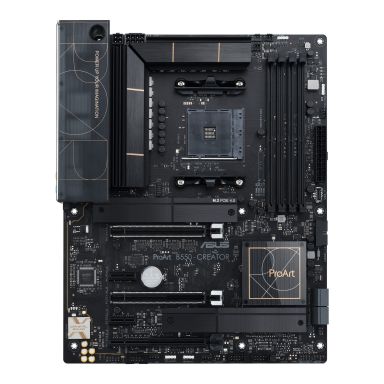

ASUS ProArt B550-CREATOR AMD B550 Socket AM4 ATX
In Stock
|
$256.70
$308.04 (Inc. VAT)
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Supported processor sockets
Socket AM4
Parallel processing technology support
Not supported
HDMI version
2.1
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
RAID levels
0, 1, 10
Supported processor sockets
Socket AM4
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, 3rd Generation AMD Ryzen 9, AMD Ryzen 9 5th Gen
Supported processor sockets
Socket AM4
Processor socket
Socket AM4
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800,4866,5100 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, PCI Express 3.0, PCI Express 4.0, SATA III
RAID levels
0, 1, 10
Number of storage drives supported
6
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Internal I/O
Thunderbolt headers
2
Front panel connector
Yes
Audio connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, PCI Express 3.0, PCI Express 4.0, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
4
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
USB connector type
USB Type-A, USB Type-C
USB 2.0 ports quantity
2
Thunderbolt ports quantity
2
S/PDIF out port
Yes
PS/2 ports quantity
1
Microphone in
Yes
Headphone outputs
5
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Wake-on-LAN ready
Yes
LAN controller
Intel I225-V
Ethernet interface type
2.5 Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B550
Supported processor sockets
Socket AM4
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
SupremeFX S1220A
Harmonized System (HS) code
84733020
Expansion slots
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
2
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
256 Mbit
Software
Windows operating systems supported
Windows 10 x64
Drivers included
Yes
Logistics data
Harmonized System (HS) code
84733020
Weight & dimensions
Height
68 mm
Weight
1 kg
Width
305 mm
Depth
244 mm
Packaging content
Drivers included
Yes
Cables included
SATA
Other features
Height
68 mm
Weight
1 kg
