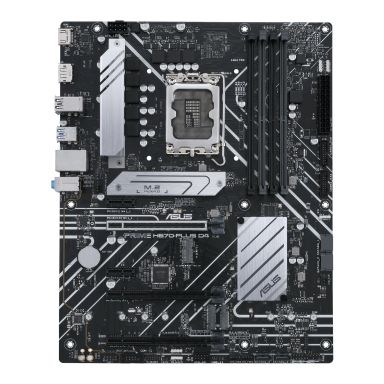

ASUS PRIME H670-PLUS D4 Intel H670 LGA 1700 ATX
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
3
Thunderbolt headers
1
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
S/PDIF out connector
Yes
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
3
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Number of displays supported
2
Motherboard chipset family
Intel
Motherboard chipset
Intel H670
HDMI version
2.1
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel H670
RAID levels
0, 1, 5, 10
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium®, Intel® Pentium® Gold
Maximum number of SMP processors
1
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4266,4400,4600,4800,5000,5066 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA
RAID levels
0, 1, 5, 10
Graphics
Number of displays supported
2
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
USB connector type
USB Type-A, USB Type-C
USB 2.0 ports quantity
2
Microphone in
Yes
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
2.5 Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel H670
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
3
PCI Express x1 (Gen 3.x) slots
2
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
192 Mbit
Software
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Drivers included
Yes
Weight & dimensions
Height
53 mm
Weight
707 g
Width
305 mm
Depth
244 mm
Packaging content
Drivers included
Yes
Cables included
SATA
Other features
Height
53 mm
Weight
707 g
ASUS PRIME H670-PLUS D4 Intel H670 LGA 1700 ATX
