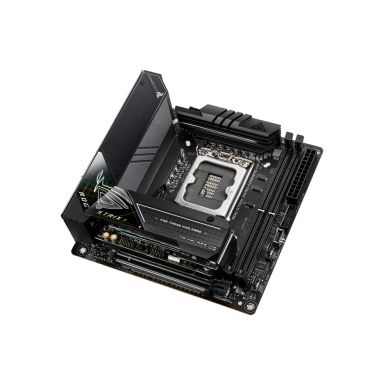

ASUS ROG-STRIX-Z690-I-GAMING-WIFI Intel Z690 LGA 1700 mini ITX
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Number of chassis fan connectors
1
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z690
Parallel processing technology support
Not supported
HDMI version
2.1
Motherboard form factor
mini ITX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel Z690
RAID levels
0, 1, 5, 10
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel Pentium G
Processor socket
LGA 1700
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Supported memory clock speeds
6400 MHz
Maximum internal memory
64 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA
RAID levels
0, 1, 5, 10
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 2.0 ports quantity
2
S/PDIF out port
Yes
Microphone in
Yes
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
USB4 Gen 3x2 ports quantity
2
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.2
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Features
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel Z690
Audio output channels
7.1 channels
Motherboard form factor
mini ITX
Component for
PC
Audio chip
Realtek ALC4080
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 (Gen 5.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Software
Windows operating systems supported
Windows 10, Windows 11
Drivers included
Yes
Logistics data
Harmonized System (HS) code
84733020
Weight & dimensions
Weight
880 g
Width
170 mm
Depth
170 mm
Packaging content
Drivers included
Yes
Cables included
SATA
Other features
Weight
880 g
Packaging content
1 x ROG USB2.0 splitter cable
1 x Panel Cable
2 x SATA 6Gb/s cables
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package(s)
1 x ROG key chain
1 x ROG logo plate stickers
1 x ROG Strix stickers
1 x ROG Strix thank you card
1 x Support DVD
1 x User guide
ASUS ROG-STRIX-Z690-I-GAMING-WIFI Intel Z690 LGA 1700 mini ITX
