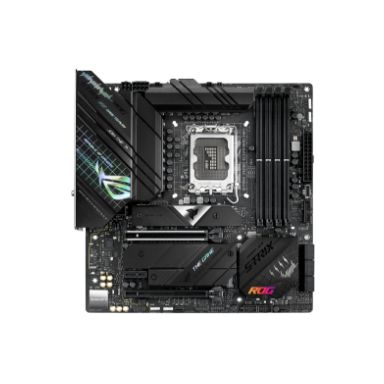

ASUS ROG STRIX Z690-G GAMING WIFI Intel Z690 LGA 1700 micro ATX
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
3
Thunderbolt headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
12V power connector
Yes
Supported storage drive interfaces
M.2- SATA
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Power fan connector
Yes
Peripheral (Molex) power connectors (4-pin)
1
Number of SATA III connectors
6
Number of chassis fan connectors
3
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z690
Parallel processing technology support
Not supported
HDMI version
2.1
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10- Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel Z690
RAID levels
0- 1- 5- 10
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Core⢠i3- Intel® Core⢠i5- Intel® Core⢠i7- Intel® Core⢠i9- Intel Pentium G
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
4800-5000-5200-5400-5600-5800-6000 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2- SATA
RAID levels
0- 1- 5- 10
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
USB 2.0 ports quantity
2
S/PDIF out port
Yes
Microphone in
Yes
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a- 802.11b- 802.11g- Wi-Fi 4 (802.11n)- Wi-Fi 5 (802.11ac)- Wi-Fi 6E (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.2
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Features
Windows operating systems supported
Windows 10- Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel Z690
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC4080
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
3
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Software
Windows operating systems supported
Windows 10- Windows 11
Drivers included
Yes
Weight & dimensions
Weight
1.2 kg
Width
244 mm
Depth
244 mm
Packaging content
Drivers included
Yes
Cables included
SATA
Other features
Weight
1.2 kg
Packaging content
4 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x M.2 Q-Latch package for M.2 backplate 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 1 x Support DVD 1 x User manual
ASUS ROG STRIX Z690-G GAMING WIFI Intel Z690 LGA 1700 micro ATX
