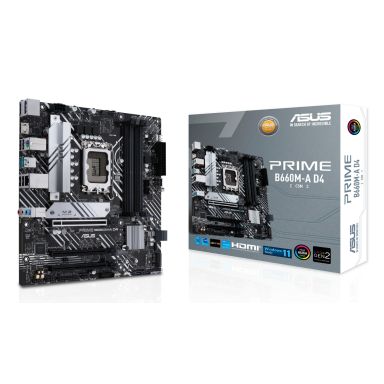

ASUS PRIME B660M-A D4-CSM Intel B660 LGA 1700 micro ATX
In Stock
|
$124.97
$149.96 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
2
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
TPM connector
Yes
S/PDIF out connector
Yes
Power fan connector
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
2
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
Cooling type
Passive
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
RAID levels
0, 1, 5, 10
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium® Gold
Maximum number of SMP processors
1
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5333 MHz
Maximum internal memory
128 GB
Supported memory clock speed (max)
5333 MHz
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
6
RAID support
Yes
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
2
USB 2.0 ports quantity
4
PS/2 ports quantity
1
HDMI ports quantity
2
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel B660
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC897
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Software
Windows operating systems supported
Windows 10, Windows 11
Weight & dimensions
Width
244 mm
Depth
244 mm
Packaging content
Cables included
SATA
ASUS PRIME B660M-A D4-CSM Intel B660 LGA 1700 micro ATX
