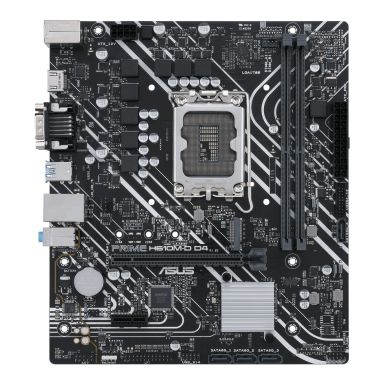

ASUS PRIME H610M-D D4 Intel H610 LGA 1700 micro ATX
In Stock
|
$110.81
$132.97 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
1
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
S/PDIF out connector
Yes
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
1
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Number of displays supported
2
Motherboard chipset family
Intel
Motherboard chipset
Intel H610
HDMI version
2.1
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel H610
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium®, Intel® Pentium® Gold
Maximum number of SMP processors
1
Processor socket
LGA 1700
Memory
Number of memory slots
2
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200 MHz
Maximum internal memory
64 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA
Graphics
Number of displays supported
2
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
1
Microphone in
Yes
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel H610
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
1
PCI Express x16 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Software
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Drivers included
Yes
Logistics data
Harmonized System (HS) code
84733020
Weight & dimensions
Height
51 mm
Weight
842 g
Width
234 mm
Depth
203 mm
Packaging content
Drivers included
Yes
Cables included
SATA
Other features
Height
51 mm
Weight
842 g
ASUS PRIME H610M-D D4 Intel H610 LGA 1700 micro ATX
