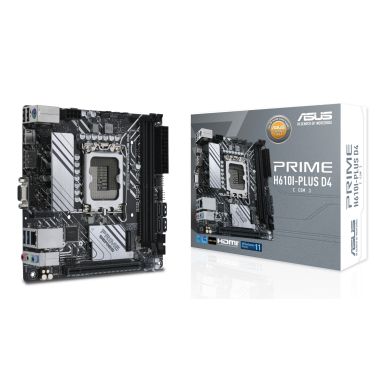

ASUS PRIME H610I-PLUS D4-CSM Intel H610 LGA 1700 mini ITX
0 Reviews
| Add your review
In Stock
|
£96.95
£116.34 (Inc. VAT)
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Supported storage drive interfaces | M.2- SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Power fan connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Supported processor sockets | LGA 1700 |
| HDMI version | 2.1 |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Maximum internal memory supported by processor | 64 GB |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10- Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Supported processor sockets | LGA 1700 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Maximum internal memory supported by processor | 64 GB |
| Compatible processor series | Intel® Celeron®- Intel® Core™ i3- Intel® Core™ i5- Intel® Core™ i7- Intel® Core™ i9- Intel® Pentium® |
| Supported processor sockets | LGA 1700 |
| Processor socket | LGA 1700 |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Non-ECC | Yes |
| Supported memory clock speeds | 2133-2400-2666-2800-2933-3000-3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2- SATA III |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 2 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 10- Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 |
| Supported processor sockets | LGA 1700 |
| Compatible operating systems | Windows® 11 64-bit- Windows® 10 64-bit |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Power | |
| Power source type | ATX |
| Packaging data | |
| Package width | 226 mm |
| Package depth | 182 mm |
| Package height | 60 mm |
| Software | |
| Windows operating systems supported | Windows 10- Windows 11 |
| Drivers included | Yes |
| Weight & dimensions | |
| Height | 71 mm |
| Package width | 226 mm |
| Package depth | 182 mm |
| Package height | 60 mm |
| Weight | 382 g |
| Width | 170.2 mm |
| Depth | 170.2 mm |
| Packaging content | |
| Drivers included | Yes |
| Cables included | SATA |
| Other features | |
| Height | 71 mm |
| Package width | 226 mm |
| Package depth | 182 mm |
| Package height | 60 mm |
| Weight | 382 g |
| Compatible operating systems | Windows® 11 64-bit- Windows® 10 64-bit |
ASUS PRIME H610I-PLUS D4-CSM Intel H610 LGA 1700 mini ITX
