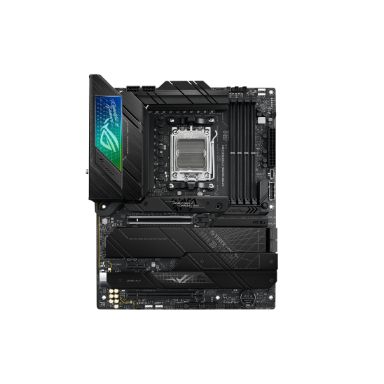

ASUS ROG Strix Socket AM5 AMD Motherboard
In Stock
|
$357.00
$428.40 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
4
Thunderbolt headers
1
12V power connector
Yes
Supported storage drive interfaces
M.2- SATA III
USB 2.0 connectors
4
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
4
Number of chassis fan connectors
5
Front panel audio connector
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD X670
Parallel processing technology support
Not supported
HDMI version
2.1
Cooling type
Active
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD X670
RAID levels
0- 1- 10
Cooling type
Active
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen⢠7
Processor socket
Socket AM5
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
4800-5000-5200-5400-5600-5800-6000-6200-6400 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2- SATA III
RAID levels
0- 1- 10
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
DisplayPort version
1.4
USB 2.0 ports quantity
2
S/PDIF out port
Yes
Microphone in
Yes
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Digital audio optical out
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a- 802.11b- 802.11g- Wi-Fi 4 (802.11n)- Wi-Fi 5 (802.11ac)- Wi-Fi 6E (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.2
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Features
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD X670
Cooling type
Active
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Audio chip
Realtek ALC4080
Expansion slots
Number of M.2 (M) slots
4
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS button
Yes
Packaging data
Package width
338 mm
Package depth
273 mm
Package height
680 mm
Package weight
2.55 kg
Software
Windows operating systems supported
Windows 10 x64- Windows 11 x64
Weight & dimensions
Package width
338 mm
Package depth
273 mm
Package height
680 mm
Package weight
2.55 kg
Width
305 mm
Depth
244 mm
Packaging content
Cables included
SATA
Other features
Package width
338 mm
Package depth
273 mm
Package height
680 mm
Package weight
2.55 kg
ASUS ROG Strix Socket AM5 AMD Motherboard
