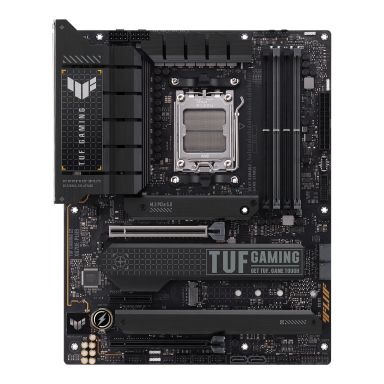

ASUS TUF GAMING X670E-PLUS AMD X670 Socket AM5 ATX

Number of M.2 (M) slots

4

Thunderbolt headers

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

12V power connector

Yes

Supported storage drive interfaces

M.2, SATA III

USB 2.0 connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Peripheral (Molex) power connectors (4-pin)

1

Number of SATA III connectors

4

Number of COM connectors

1

Number of chassis fan connectors

4

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

RGB LED pin header

Yes

Motherboard chipset family

AMD

Motherboard chipset

AMD X670

Supported processor sockets

Socket AM5

Parallel processing technology support

Not supported

HDMI version

2.1

Motherboard form factor

ATX

Component for

PC

Special features

TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers

Audio output channels

7.1 channels

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

AMD

Motherboard chipset

AMD X670

RAID levels

0, 1, 10

Supported processor sockets

Socket AM5

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Processor manufacturer

AMD

Supported processor sockets

Socket AM5

Processor socket

Socket AM5

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

ECC

Yes

Non-ECC

Yes

Supported memory clock speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz

Maximum internal memory

128 GB

Unbuffered memory

Yes

Supported memory clock speed (max)

6400 MHz

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 10

RAID support

Yes

Parallel processing technology support

Not supported

Maximum resolution

7680 x 4320 pixels

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

5

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

Microphone in

Yes

Headphone outputs

1

HDMI version

2.1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DisplayPorts quantity

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

Ethernet LAN

Yes

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

AMD

Motherboard chipset

AMD X670

Supported processor sockets

Socket AM5

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Audio chip

Realtek S1220A

Number of M.2 (M) slots

4

PCI Express x4 slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Power source type

ATX

Maximum resolution

7680 x 4320 pixels

Package width

338 mm

Package depth

273 mm

Package height

68 mm

Package weight

2.35 kg

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Drivers included

Yes

Package width

338 mm

Package depth

273 mm

Package height

68 mm

Package weight

2.35 kg

Width

305 mm

Depth

244 mm

Drivers included

Yes

Cables included

SATA

User guide

Yes

Package width

338 mm

Package depth

273 mm

Package height

68 mm

Package weight

2.35 kg

Special features

TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack™ button - BIOS FlashBack™ LED - Clear CMOS header - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 headers

Packaging content

Cables 2 x SATA 6Gb/s cables Miscellaneous 2 x Rubber packages for M.2 2 x Screw packages for M.2 SSD Documentation 1 x TUF certification card 1 x User guide
