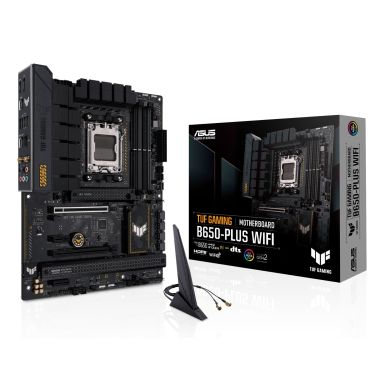

ASUS TUF GAMING B650-PLUS WIFI AMD B650 Socket AM5 ATX

Number of M.2 (M) slots

3

Thunderbolt headers

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Supported storage drive interfaces

M.2, SATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

mSATA ports quantity

0

Number of SATA connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Number of COM connectors

1

Number of chassis fan connectors

4

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

RGB LED pin header

Yes

USB 3.2 Gen 2x2 connectors

0

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

Supported processor sockets

Socket AM5

Parallel processing technology support

Not supported

On-board graphics card

No

Motherboard form factor

ATX

Component for

PC

Mini PCI Express slot (half-length)

0

Mini PCI Express slot (full length)

0

Audio output channels

7.1 channels

Supported storage drive types

HDD & SSD

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

RAID levels

0, 1, 10

Supported processor sockets

Socket AM5

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series

Supported processor sockets

Socket AM5

Processor socket

Socket AM5

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Supported memory clock speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7600 MHz

Maximum internal memory

128 GB

Unbuffered memory

Yes

ECC сompatibility

ECC & Non-ECC

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 10

Number of storage drives supported

7

RAID support

Yes

Parallel processing technology support

Not supported

On-board graphics card

No

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

0

S/PDIF out port

No

PS/2 ports quantity

0

Microphone in

Yes

Headphone outputs

1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DVI-I ports quantity

0

DVI-D ports quantity

0

DisplayPorts quantity

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB4 Gen 3x2 ports quantity

0

USB4 Gen 2x2 ports quantity

0

Line-in

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)

Ethernet interface type

2.5 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.2

Top Wi-Fi standard

Wi-Fi 6 (802.11ax)

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

Supported processor sockets

Socket AM5

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Product colour

Black

Mini PCI Express (Gen 2.x) slots

0

Mini PCI Express (Gen 1.x) slots

0

Number of M.2 (M) slots

3

PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots

0

PCI Express x1 (Gen 2.x) slots

0

PCI Express x1 (Gen 3.x) slots

0

PCI Express x4 (Gen 1.x) slots

0

PCI Express x4 (Gen 2.x) slots

0

PCI Express x8 (Gen 1.x) slots

0

PCI Express x16 (Gen 2.x) slots

0

PCI Express x16 (Gen 3.x) slots

0

PCI-X slots

0

PCI slots

0

PCI Express x8 slots

0

PCI Express x4 slots

0

PCI Express x16 slots

0

PCI Express x1 slots

0

Mini PCI Express slots

0

Mini PCI Express slot (half-length)

0

Mini PCI Express slot (full length)

0

PCI Express x1 (Gen 4.x) slots

2

PCI Express x16 (Gen 4.x) slots

2

PCI Express OCuLink connectors (NVMe support)

0

PCI Express x16 (Gen 5.x) slots

0

PCI Express x4 (Gen 4.x) slots

0

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Package width

338 mm

Package depth

273 mm

Package height

68 mm

Package weight

1.36 kg

Height

50 mm

Package width

338 mm

Package depth

273 mm

Package height

68 mm

Package weight

1.36 kg

Weight

1.2 kg

Width

305 mm

Depth

244 mm

Height

50 mm

Package width

338 mm

Package depth

273 mm

Package height

68 mm

Package weight

1.36 kg

mSATA ports quantity

0

Weight

1.2 kg

PCI Express x1 (Gen 4.x) slots

2
