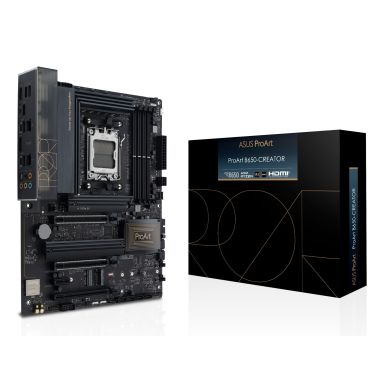

ASUS PROART B650-CREATOR AMD B650 Socket AM5 ATX
In Stock
|
$290.54
$348.65 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
3
Number of M.2 (E) slots
1
Thunderbolt headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
4
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
Supported processor sockets
Socket AM5
Parallel processing technology support
Not supported
HDMI version
2.1
Back-to-BIOS button
Yes
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10, Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
RAID levels
0, 1, 10
Supported processor sockets
Socket AM5
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen 3, AMD Ryzen 7, AMD Ryzen 9 7th Gen
Supported processor sockets
Socket AM5
Processor socket
Socket AM5
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
6400 MHz
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 10
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
2
DisplayPort version
1.4
USB 2.0 ports quantity
2
S/PDIF out port
Yes
Microphone in
Yes
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
DisplayPorts quantity
1
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
2.5 Gigabit Ethernet, Gigabit Ethernet
Features
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 11 x64
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
Supported processor sockets
Socket AM5
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Expansion slots
Number of M.2 (M) slots
3
Number of M.2 (E) slots
1
PCI Express x4 (Gen 1.x) slots
1
PCI Express x16 (Gen 4.x) slots
3
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Back-to-BIOS button
Yes
Power
Power source type
ATX
Software
Windows operating systems supported
Windows 10, Windows 11 x64
Weight & dimensions
Width
305 mm
Depth
244 mm
Packaging content
Cables included
SATA
User guide
Yes
Other features
Number of M.2 (E) slots
1
Back-to-BIOS button
Yes
ASUS PROART B650-CREATOR AMD B650 Socket AM5 ATX
