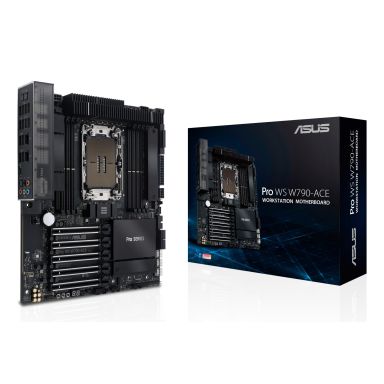

ASUS Pro WS W790-ACE workstation motherboard socket
0 Reviews
| Add your review
In Stock
|
£643.61
£772.33 (Inc. VAT)
| Technical details | |
|---|---|
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel W790 |
| Component for | Workstation |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64- Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel W790 |
| RAID levels | 0- 1- 5- 10 |
| Audio output channels | 7.1 channels |
| Component for | Workstation |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Xeon W |
| Intel Xeon series | W-3400- W-2400 |
| Processor socket | LGA 4677 |
| Memory | |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Quad-channel |
| ECC | Yes |
| Supported memory clock speeds | 4800-5000-5200-5400-5600-5800-6000-6200-6400-6600-6800 MHz |
| Maximum internal memory | 2048 GB |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2- SATA III |
| RAID levels | 0- 1- 5- 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Internal I/O | |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2- SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 5 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Rear panel I/O ports | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 8 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | 2.5 Gigabit Ethernet- 10 Gigabit Ethernet- Fast Ethernet- Gigabit Ethernet |
| Features | |
| Windows operating systems supported | Windows 10 x64- Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel W790 |
| Audio output channels | 7.1 channels |
| Component for | Workstation |
| Audio chip | Realtek S1220A |
| Expansion slots | |
| PCI Express x16 (Gen 5.x) slots | 5 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 512 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
| Package width | 370 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 3.52 kg |
| Software | |
| Windows operating systems supported | Windows 10 x64- Windows 11 |
| Weight & dimensions | |
| Height | 50 mm |
| Package width | 370 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 3.52 kg |
| Weight | 1.81 kg |
| Width | 305 mm |
| Depth | 277 mm |
| Other features | |
| Height | 50 mm |
| Package width | 370 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 3.52 kg |
| Weight | 1.81 kg |
| Intel Xeon series | W-3400- W-2400 |
