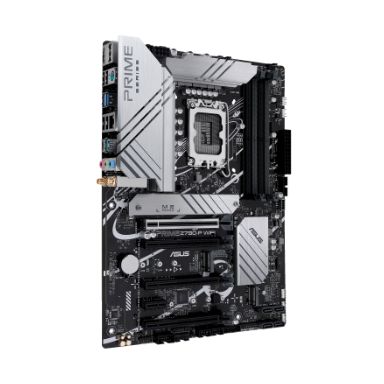

ASUS PRIME Z790-P WIFI Intel Z790 LGA 1700 ATX
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
3
Thunderbolt headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
12V power connector
Yes
Supported storage drive interfaces
M.2- SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
TPM connector
Yes
S/PDIF out connector
Yes
Peripheral (Molex) power connectors (4-pin)
1
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
3
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790
Supported processor sockets
LGA 1700
Parallel processing technology support
Not supported
Motherboard form factor
ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64- Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790
RAID levels
0- 1- 5- 10
Supported processor sockets
LGA 1700
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®- Intel® Core⢠i3- Intel® Core⢠i5- Intel® Core⢠i7- Intel® Core⢠i9- Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
4800-5000-5200-5400-5600-5800-6000-6200-6400-6600-6800-7000-7200 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
7200 MHz
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2- SATA III
RAID levels
0- 1- 5- 10
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 2.0 ports quantity
4
WiFi-AP antenna jack
1
PS/2 ports quantity
1
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a- 802.11b- 802.11g- Wi-Fi 4 (802.11n)- Wi-Fi 5 (802.11ac)- Wi-Fi 6 (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.2
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Features
Power source type
ATX
Windows operating systems supported
Windows 10 x64- Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel Z790
Supported processor sockets
LGA 1700
Audio output channels
7.1 channels
Motherboard form factor
ATX
Component for
PC
Expansion slots
Number of M.2 (M) slots
3
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 4.x) slots
3
PCI Express x16 (Gen 5.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
192 Mbit
Clear CMOS button
Yes
Power
Power source type
ATX
Packaging data
Package width
338 mm
Package depth
273 mm
Package height
68 mm
Package weight
1.68 kg
Software
Windows operating systems supported
Windows 10 x64- Windows 11
Drivers included
Yes
Weight & dimensions
Height
40 mm
Package width
338 mm
Package depth
273 mm
Package height
68 mm
Package weight
1.68 kg
Weight
1.03 kg
Width
305 mm
Depth
234 mm
Packaging content
Drivers included
Yes
Cables included
SATA
Other features
Height
40 mm
Package width
338 mm
Package depth
273 mm
Package height
68 mm
Package weight
1.68 kg
Weight
1.03 kg
ASUS PRIME Z790-P WIFI Intel Z790 LGA 1700 ATX
