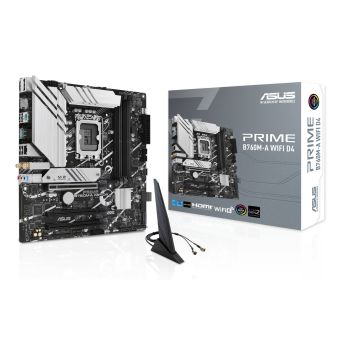

ASUS PRIME B760M-A WIFI D4 Intel B760 LGA 1700 micro ATX
In Stock
|
£106.25
£127.50 (Inc. VAT)
get it next day (UK Mainland Orders)
ASUS PRIME B760M-A WIFI D4 Intel B760 LGA 1700 micro ATX
Write Your Own Review
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B760
Supported processor sockets
LGA 1700
Parallel processing technology support
Not supported
HDMI version
2.1
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B760
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1700
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
5333 MHz
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
6
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Maximum resolution
3840 x 2160 pixels
Internal I/O
12V power connector
Yes
Supported storage drive interfaces
M.2, PCI Express 4.0, SATA III
USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
TPM connector
Yes
S/PDIF out connector
Yes
Number of SATA III connectors
4
Number of chassis fan connectors
2
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
DisplayPort version
1.4
USB connector type
USB Type-A
USB 2.0 ports quantity
4
WiFi-AP antenna jack
1
PS/2 ports quantity
1
Headphone outputs
3
HDMI version
2.1
HDMI ports quantity
2
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Wake-on-LAN ready
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.2
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Features
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Motherboard chipset family
Intel
Motherboard chipset
Intel B760
Supported processor sockets
LGA 1700
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Product colour
Black
Expansion slots
PCI Express x16 (Gen 4.x) slots
3
BIOS
BIOS type
UEFI AMI
Clear CMOS jumper
Yes
BIOS memory size
128 Mbit
Video
Maximum resolution
3840 x 2160 pixels
Software
Windows operating systems supported
Windows 10 x64, Windows 11 x64
Weight & dimensions
Width
244 mm
Depth
244 mm
Packaging content
Cables included
SATA
Screws included
Yes
Antenna included
Yes
| Weight | 1.00 kgs |
