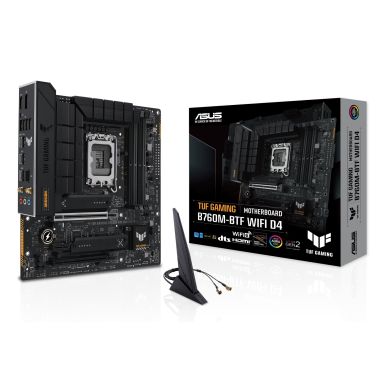

ASUS TUF GAMING B760M-BTF WIFI D4 Intel B760 LGA 1700 micro ATX
In Stock
|
$204.42
$245.30 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
3
Thunderbolt headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Peripheral (Molex) power connectors (4-pin)
1
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
3
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B760
Supported processor sockets
LGA 1700
Parallel processing technology support
Not supported
HDMI version
2.1
Cooling type
Passive
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel B760
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1700
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9, Intel® Pentium® Gold
Supported processor sockets
LGA 1700
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,4000,4266,4400,4600,4800,5000,5066,5333 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
5333 MHz
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
7
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
USB 2.0 ports quantity
4
WiFi-AP antenna jack
1
Microphone in
Yes
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.2
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Features
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel B760
Supported processor sockets
LGA 1700
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion slots
Number of M.2 (M) slots
3
PCI Express x1 (Gen 4.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Clear CMOS button
Yes
Power
Power source type
ATX
Packaging data
Package width
275 mm
Package depth
275 mm
Package height
67.5 mm
Package weight
1.67 kg
Software
Windows operating systems supported
Windows 10, Windows 11
Weight & dimensions
Package width
275 mm
Package depth
275 mm
Package height
67.5 mm
Package weight
1.67 kg
Width
244 mm
Depth
244 mm
Packaging content
Cables included
SATA
User guide
Yes
Other features
Package width
275 mm
Package depth
275 mm
Package height
67.5 mm
Package weight
1.67 kg
PCI Express x1 (Gen 4.x) slots
1
ASUS TUF GAMING B760M-BTF WIFI D4 Intel B760 LGA 1700 micro ATX
