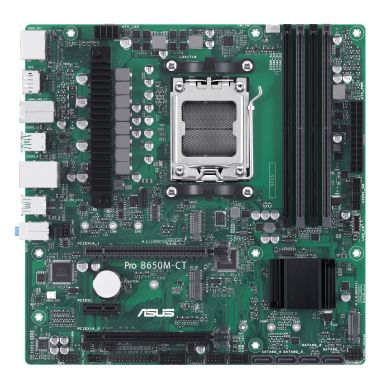

ASUS PRO B650M-CT-CSM AMD B650 Socket AM5 micro ATX
In Stock
|
$166.77
$200.12 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
2
Number of M.2 (E) slots
1
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
2
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
Supported processor sockets
Socket AM5
Parallel processing technology support
Not supported
HDMI version
2.1
Cooling type
Passive
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
RAID levels
0, 1, 10
Supported processor sockets
Socket AM5
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
AMD
Compatible processor series
AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9 7th Gen
Supported processor sockets
Socket AM5
Maximum number of SMP processors
1
Processor socket
Socket AM5
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
ECC
Yes
Non-ECC
Yes
Supported memory clock speeds
4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
6400 MHz
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 10
Number of storage drives supported
6
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
USB 2.0 ports quantity
4
PS/2 ports quantity
1
Microphone in
Yes
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
2
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Power source type
ATX
Motherboard chipset family
AMD
Motherboard chipset
AMD B650
Supported processor sockets
Socket AM5
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion slots
Number of M.2 (M) slots
2
Number of M.2 (E) slots
1
PCI Express x1 (Gen 4.x) slots
1
PCI Express x16 (Gen 4.x) slots
2
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Power
Power source type
ATX
Weight & dimensions
Width
244 mm
Depth
244 mm
Packaging content
Cables included
SATA
User guide
Yes
Other features
Number of M.2 (E) slots
1
PCI Express x1 (Gen 4.x) slots
1
ASUS PRO B650M-CT-CSM AMD B650 Socket AM5 micro ATX
