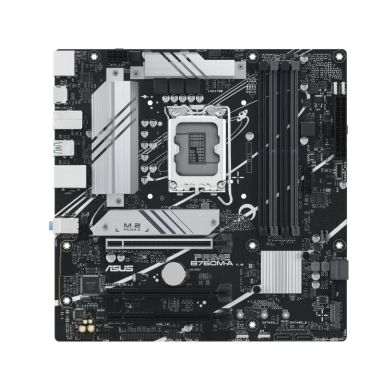

ASUS PRIME B760M-A-CSM Intel B760 LGA 1700 micro ATX
In Stock
|
$154.76
$185.71 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
2
Front panel connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
3
TPM connector
Yes
S/PDIF out connector
Yes
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
2
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
RGB LED pin header
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B760
Supported processor sockets
LGA 1700
Parallel processing technology support
Not supported
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel B760
Supported processor sockets
LGA 1700
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®, Intel® Pentium® Gold, Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9
Supported processor sockets
LGA 1700
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Supported memory clock speeds
7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
7200 MHz
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of storage drives supported
6
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 2.0 ports quantity
4
WiFi-AP antenna jack
1
PS/2 ports quantity
1
Microphone in
Yes
Headphone outputs
1
HDMI ports quantity
2
Ethernet LAN (RJ-45) ports
1
DisplayPorts quantity
1
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel B760
Supported processor sockets
LGA 1700
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 (Gen 4.x) slots
3
BIOS
BIOS type
UEFI AMI
BIOS memory size
128 Mbit
Clear CMOS button
Yes
Packaging data
Package width
270 mm
Package depth
263 mm
Package height
52 mm
Package weight
1.14 kg
Software
Windows operating systems supported
Windows 10 x64, Windows 11
Weight & dimensions
Height
40 mm
Package width
270 mm
Package depth
263 mm
Package height
52 mm
Package weight
1.14 kg
Width
244 mm
Depth
244 mm
Packaging content
Cables included
SATA
Other features
Height
40 mm
Package width
270 mm
Package depth
263 mm
Package height
52 mm
Package weight
1.14 kg
