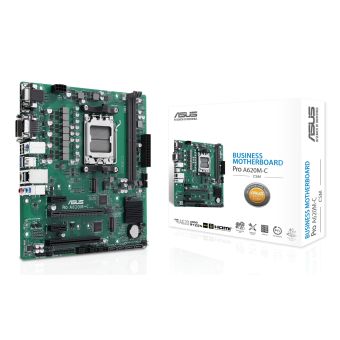

ASUS PRO A620M-C-CSM AMD A620 Socket AM5 micro ATX

Number of M.2 (M) slots

2

12V power connector

Yes

Supported storage drive interfaces

M.2, SATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

Number of SATA III connectors

4

Number of COM connectors

1

Number of chassis fan connectors

2

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

Chassis intrusion connector

Yes

ATX Power connector (24-pin)

Yes

Motherboard chipset family

AMD

Motherboard chipset

AMD A620

Supported processor sockets

Socket AM5

Parallel processing technology support

Not supported

HDMI version

2.1

Cooling type

Passive

Motherboard form factor

micro ATX

Component for

PC

Audio output channels

7.1 channels

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 10, Windows 11

Motherboard chipset family

AMD

Motherboard chipset

AMD A620

RAID levels

0, 1, 10

Supported processor sockets

Socket AM5

Cooling type

Passive

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 5 7th gen, AMD Ryzen 7 7th Gen, AMD Ryzen 9 7th Gen

Supported processor sockets

Socket AM5

Processor socket

Socket AM5

Number of memory slots

2

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Non-ECC

Yes

Supported memory clock speeds

4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz

Maximum internal memory

96 GB

Unbuffered memory

Yes

Supported memory clock speed (max)

6400 MHz

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 10

Number of storage drives supported

4

RAID support

Yes

Parallel processing technology support

Not supported

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

DisplayPort version

1.4

USB 2.0 ports quantity

3

VGA (D-Sub) ports quantity

1

PS/2 ports quantity

1

Microphone in

Yes

Headphone outputs

1

HDMI version

2.1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DVI-D ports quantity

1

DisplayPorts quantity

1

COM ports quantity

1

Line-in

Yes

Ethernet LAN

Yes

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Power source type

ATX

Windows operating systems supported

Windows 10, Windows 11

Motherboard chipset family

AMD

Motherboard chipset

AMD A620

Supported processor sockets

Socket AM5

Cooling type

Passive

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Number of M.2 (M) slots

2

PCI Express x1 (Gen 3.x) slots

2

PCI slots

1

PCI Express x16 (Gen 4.x) slots

1

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Power source type

ATX

Package width

270 mm

Package depth

263 mm

Package height

51.5 mm

Package weight

950 g

Windows operating systems supported

Windows 10, Windows 11

Package width

270 mm

Package depth

263 mm

Package height

51.5 mm

Package weight

950 g

Width

244 mm

Depth

224 mm

Cables included

SATA

User guide

Yes

Package width

270 mm

Package depth

263 mm

Package height

51.5 mm

Package weight

950 g
