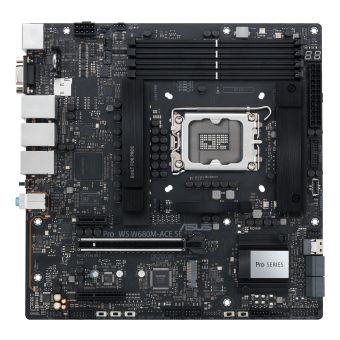

ASUS PRO WS W680M-ACE SE Intel W680 LGA 1700 micro ATX
In Stock
|
£426.94
£512.33 (Inc. VAT)
get it next day (UK Mainland Orders)
ASUS PRO WS W680M-ACE SE Intel W680 LGA 1700 micro ATX
Write Your Own Review
Internal I/O
Number of M.2 (M) slots
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Front panel connector
Yes
Audio connector
Yes
12V power connector
Yes
Supported storage drive interfaces
M.2, NVMe, PCI Express 4.0, SATA III, SlimSAS
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
3
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel W680
Supported processor sockets
LGA 1700
Parallel processing technology support
Not supported
HDMI version
2.1
Cooling type
Passive
Back-to-BIOS button
Yes
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
8
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel W680
RAID levels
0, 1, 5, 10
Supported processor sockets
LGA 1700
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion card interfaces
Audio connector
Yes
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Core i3, Intel® Core i5, Intel® Core i7, Intel® Core i9
Supported processor sockets
LGA 1700
Processor socket
LGA 1700
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Non-ECC
Yes
Maximum internal memory
192 GB
Unbuffered memory
Yes
Storage controllers
Number of HDDs supported
8
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, NVMe, PCI Express 4.0, SATA III, SlimSAS
RAID levels
0, 1, 5, 10
Number of storage drives supported
10
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
DisplayPort version
1.4
VGA (D-Sub) ports quantity
1
Headphone outputs
1
HDMI version
2.1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
3
DisplayPorts quantity
1
Number of SAS ports
1
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
2.5 Gigabit Ethernet, Gigabit Ethernet
Features
Power source type
ATX
Windows operating systems supported
Windows 10, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel W680
Supported processor sockets
LGA 1700
Cooling type
Passive
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Expansion slots
Number of M.2 (M) slots
2
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
PCI Express x4 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Back-to-BIOS button
Yes
Power
Power source type
ATX
Packaging data
Package width
275 mm
Package depth
275 mm
Package height
67.5 mm
Package weight
1.35 kg
Software
Windows operating systems supported
Windows 10, Windows 11
Weight & dimensions
Package width
275 mm
Package depth
275 mm
Package height
67.5 mm
Package weight
1.35 kg
Weight
820 g
Width
244 mm
Depth
244 mm
Packaging content
Cables included
SATA
User guide
Yes
Other features
Package width
275 mm
Package depth
275 mm
Package height
67.5 mm
Package weight
1.35 kg
Weight
820 g
Back-to-BIOS button
Yes
| Length | 27.5 cm |
| Width | 27.5 cm |
| Height | 6.75 cm |
| Weight | 1.35 kgs |
