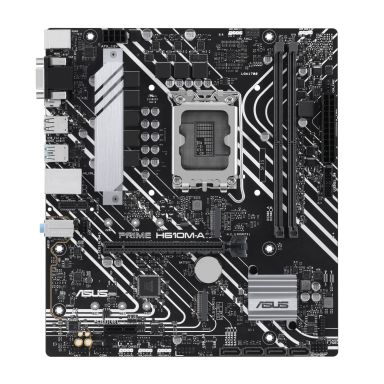

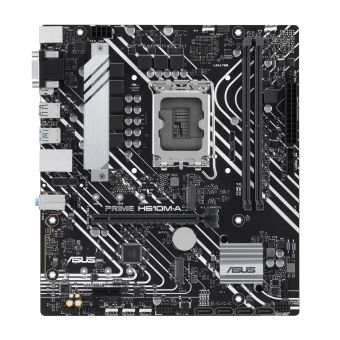

ASUS PRIME H610M-A-CSM Intel H610 LGA 1700 micro ATX

Number of M.2 (M) slots

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

12V power connector

Yes

Supported storage drive interfaces

M.2, SATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

S/PDIF out connector

Yes

Number of SATA III connectors

4

Number of COM connectors

1

Number of chassis fan connectors

2

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

Motherboard chipset family

Intel

Motherboard chipset

Intel H610

Parallel processing technology support

Not supported

Motherboard form factor

micro ATX

Component for

PC

Audio output channels

7.1 channels

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

Intel

Motherboard chipset

Intel H610

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Processor manufacturer

Intel

Compatible processor series

Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold

Processor socket

LGA 1700

Number of memory slots

2

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Supported memory clock speeds

4800,5000,5200,5400,5600 MHz

Maximum internal memory

96 GB

Unbuffered memory

Yes

ECC сompatibility

Non-ECC

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

Number of storage drives supported

6

Parallel processing technology support

Not supported

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

1

PS/2 ports quantity

2

Microphone in

Yes

Headphone outputs

1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DVI-D ports quantity

0

DisplayPorts quantity

1

Ethernet LAN

Yes

Wi-Fi

No

Ethernet interface type

Fast Ethernet, Gigabit Ethernet

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Motherboard chipset family

Intel

Motherboard chipset

Intel H610

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Number of M.2 (M) slots

2

PCI Express x1 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

BIOS type

UEFI AMI

BIOS memory size

128 Mbit

Package width

270 mm

Package depth

263 mm

Package height

51.5 mm

Package weight

1.07 kg

Windows operating systems supported

Windows 10 x64, Windows 11 x64

Height

39 mm

Package width

270 mm

Package depth

263 mm

Package height

51.5 mm

Package weight

1.07 kg

Weight

554 g

Width

244 mm

Depth

216 mm

Height

39 mm

Package width

270 mm

Package depth

263 mm

Package height

51.5 mm

Package weight

1.07 kg

Weight

554 g
