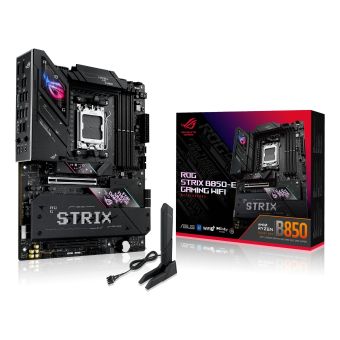

MB ASUS ROG STRIX B850-E GAMING WIFI (AMD,AM5,DDR5,ATX)

Number of M.2 (M) slots

5

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Supported storage drive interfaces

M.2, SATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

Number of SATA III connectors

4

Number of chassis fan connectors

5

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

RGB LED pin header

Yes

Number of CPU fan connectors

2

Number of EPS power connectors (8-pin)

2

Number of water pump connectors

1

Number of temperature sensor headers

1

Number of RGB LED pin headers

3

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Supported processor sockets

Socket AM5

Parallel processing technology support

Not supported

HDMI version

2.1

Motherboard form factor

ATX

Component for

PC

Audio output channels

7.1 channels

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 11

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

RAID levels

0, 1, 5, 10

Supported processor sockets

Socket AM5

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

Processor socket

Socket AM5

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Maximum internal memory

192 GB

Unbuffered memory

Yes

Supported memory clock speed (max)

8000 MHz

ECC сompatibility

ECC & Non-ECC

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 5, 10

Number of storage drives supported

9

RAID support

Yes

Parallel processing technology support

Not supported

Maximum resolution

7680 x 4320 pixels

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

6

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

DisplayPort version

1.4

USB 2.0 ports quantity

4

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

S/PDIF out port

Yes

Headphone outputs

1

HDMI version

2.1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DVI-D ports quantity

0

DisplayPorts quantity

1

Digital audio optical out

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

USB4 Gen 3x2 ports quantity

1

Line-in

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 7 (802.11be)

Ethernet interface type

5 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.4

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Power source type

ATX

Windows operating systems supported

Windows 11

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Supported processor sockets

Socket AM5

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Audio chip

Realtek ALC4080

Product colour

Black

Number of M.2 (M) slots

5

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

5

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

5

3rd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

5

4th M.2 largest key size

2280

4th M.2 highest PCI Express generation

4

5th M.2 largest key size

2280

5th M.2 highest PCI Express generation

4

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Clear CMOS button

Yes

Power source type

ATX

Maximum resolution

7680 x 4320 pixels

Package width

356 mm

Package depth

281 mm

Package height

87 mm

Package weight

2.3 kg

Windows operating systems supported

Windows 11

Package width

356 mm

Package depth

281 mm

Package height

87 mm

Package weight

2.3 kg

Width

305 mm

Depth

244 mm

Quick installation guide

Yes

Cables included

SATA

Antenna included

Yes

Package width

356 mm

Package depth

281 mm

Package height

87 mm

Package weight

2.3 kg

Quick installation guide

Yes
