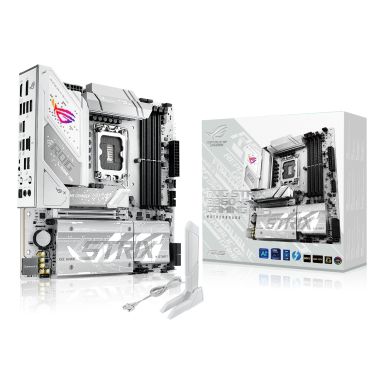

ASUS ROG STRIX B860-G GAMING WIFI Intel B860 LGA 1851 (Socket V1) micro ATX
In Stock
|
£170.86
£205.03 (Inc. VAT)
get it next day (UK Mainland Orders)
MB ASUS ROG STRIX B860-G GAMING WIFI (Intel,1851,DDR5,mATX)
Write Your Own Review
Internal I/O
Number of M.2 (M) slots
4
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Number of chassis fan connectors
2
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Number of CPU fan connectors
1
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B860
Parallel processing technology support
Not supported
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel B860
RAID levels
0, 1, 5, 10
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel Core Ultra (Series 2)
Processor socket
LGA 1851 (Socket V1)
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Maximum internal memory
256 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
9066 MHz
ECC Ñompatibility
Non-ECC
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
8
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
0
Thunderbolt ports quantity
1
S/PDIF out port
Yes
Microphone in
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
DisplayPorts quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Bluetooth
Yes
Bluetooth version
5.4
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Features
Windows operating systems supported
Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel B860
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Audio chip
Realtek ALC1220P
Product colour
White
Expansion slots
Number of M.2 (M) slots
4
PCI Express x16 (Gen 5.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Clear CMOS button
Yes
Packaging data
Package width
285 mm
Package depth
274 mm
Package height
72.5 mm
Package weight
2.12 kg
Software
Windows operating systems supported
Windows 11
Weight & dimensions
Height
50 mm
Package width
285 mm
Package depth
274 mm
Package height
72.5 mm
Package weight
2.12 kg
Weight
1.23 kg
Width
244 mm
Depth
244 mm
Other features
Height
50 mm
Package width
285 mm
Package depth
274 mm
Package height
72.5 mm
Package weight
2.12 kg
Weight
1.23 kg
| Length | 27.4 cm |
| Width | 28.5 cm |
| Height | 7.25 cm |
| Weight | 2.12 kgs |
