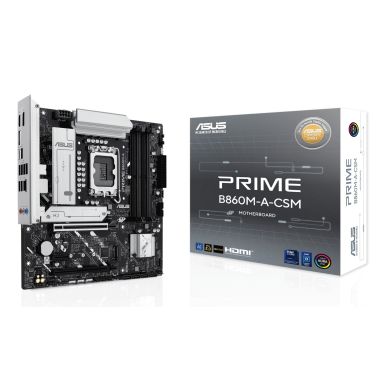

MB ASUS PRIME B860M-A-CSM (Intel,1851,DDR5,mATX)
In Stock
|
£118.04
£141.65 (Inc. VAT)
get it next day (UK Mainland Orders)
MB ASUS PRIME B860M-A-CSM (Intel,1851,DDR5,mATX)
Write Your Own Review
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel B860
Parallel processing technology support
Not supported
Motherboard form factor
micro ATX
Component for
PC
Audio
Audio output channels
7.1 channels
Performance
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Windows operating systems supported
Windows 10 x64, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel B860
RAID levels
0, 1, 5, 10
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Processor
Processor manufacturer
Intel
Compatible processor series
Intel Core Ultra (Series 2)
Processor socket
LGA 1851 (Socket V1)
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR5-SDRAM
Memory channels
Dual-channel
Maximum internal memory
256 GB
Unbuffered memory
Yes
Supported memory clock speed (max)
8666 MHz
ECC Ñompatibility
Non-ECC
Storage controllers
Number of HDDs supported
4
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
RAID levels
0, 1, 5, 10
Number of storage drives supported
6
RAID support
Yes
Graphics
Parallel processing technology support
Not supported
Internal I/O
Thunderbolt headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
12V power connector
Yes
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
S/PDIF out connector
Yes
Number of SATA III connectors
4
Number of COM connectors
1
Number of chassis fan connectors
3
Front panel audio connector
Yes
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Number of CPU fan connectors
1
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB 2.0 ports quantity
4
VGA (D-Sub) ports quantity
0
Microphone in
Yes
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
1
DVI-D ports quantity
0
DisplayPorts quantity
2
USB 3.2 Gen 2x2 Type-C ports quantity
1
Line-in
Yes
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
2.5 Gigabit Ethernet
Features
Windows operating systems supported
Windows 10 x64, Windows 11
Motherboard chipset family
Intel
Motherboard chipset
Intel B860
Audio output channels
7.1 channels
Motherboard form factor
micro ATX
Component for
PC
Product colour
Multicolour
Expansion slots
PCI Express x1 (Gen 4.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Packaging data
Package width
275 mm
Package depth
275 mm
Package height
67.5 mm
Package weight
1.36 kg
Software
Windows operating systems supported
Windows 10 x64, Windows 11
Weight & dimensions
Height
50 mm
Package width
275 mm
Package depth
275 mm
Package height
67.5 mm
Package weight
1.36 kg
Weight
815 g
Width
244 mm
Depth
244 mm
Other features
Height
50 mm
Package width
275 mm
Package depth
275 mm
Package height
67.5 mm
Package weight
1.36 kg
Weight
815 g
PCI Express x1 (Gen 4.x) slots
1
| Length | 27.5 cm |
| Width | 27.5 cm |
| Height | 6.75 cm |
| Weight | 1.36 kgs |
