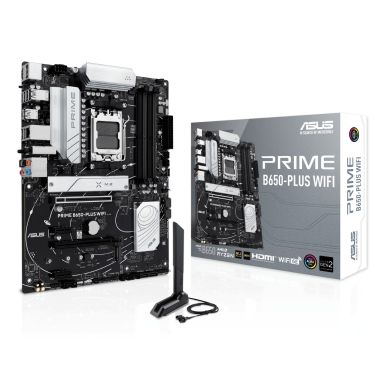

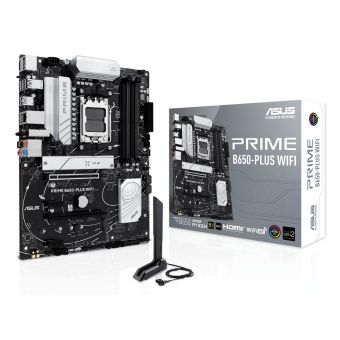

ASUS PRIME B650-PLUS WIFI AMD B650 Socket AM5 ATX

Number of M.2 (M) slots

2

Thunderbolt headers

1

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Front panel connector

Yes

12V power connector

Yes

Supported storage drive interfaces

M.2, SATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

TPM connector

Yes

Number of SATA III connectors

4

Number of COM connectors

1

Number of chassis fan connectors

3

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

RGB LED pin header

Yes

Number of CPU fan connectors

2

Number of RGB LED pin headers

1

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

Supported processor sockets

Socket AM5

Parallel processing technology support

Not supported

Motherboard form factor

ATX

Component for

PC

Audio output channels

7.1 channels

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 10 x64, Windows 11

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

RAID levels

0, 1, 10

Supported processor sockets

Socket AM5

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

Processor socket

Socket AM5

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Supported memory clock speeds

7400,4800,7600,7800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz

Maximum internal memory

192 GB

Unbuffered memory

Yes

Supported memory clock speed (max)

7600 MHz

ECC сompatibility

ECC & Non-ECC

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 10

Number of storage drives supported

6

RAID support

Yes

Parallel processing technology support

Not supported

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

3

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

USB 2.0 ports quantity

2

WiFi-AP antenna jack

1

VGA (D-Sub) ports quantity

0

S/PDIF out port

Yes

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DVI-D ports quantity

0

DisplayPorts quantity

1

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Ethernet interface type

2.5 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.3

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Windows operating systems supported

Windows 10 x64, Windows 11

Motherboard chipset family

AMD

Motherboard chipset

AMD B650

Supported processor sockets

Socket AM5

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Number of M.2 (M) slots

2

PCI Express x1 (Gen 4.x) slots

2

PCI Express x16 (Gen 4.x) slots

2

1st M.2 largest key size

22110

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Package width

338 mm

Package depth

373 mm

Package height

68 mm

Package weight

1.35 kg

Windows operating systems supported

Windows 10 x64, Windows 11

Package width

338 mm

Package depth

373 mm

Package height

68 mm

Package weight

1.35 kg

Width

305 mm

Depth

244 mm

Cables included

SATA

Screws included

Yes

Antenna included

Yes

Package width

338 mm

Package depth

373 mm

Package height

68 mm

Package weight

1.35 kg

PCI Express x1 (Gen 4.x) slots

2
