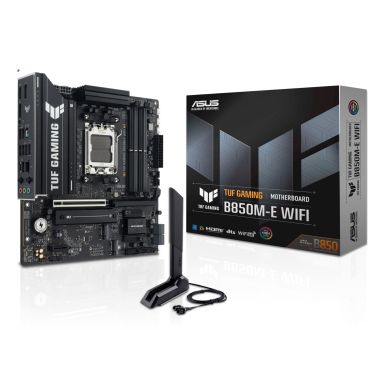

ASUS TUF GAMING B850M-E WIFI AMD B850 Socket AM5 micro ATX

Number of M.2 (M) slots

3

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Front panel connector

Yes

12V power connector

Yes

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

Peripheral (Molex) power connectors (4-pin)

1

Number of SATA III connectors

4

Number of COM connectors

1

Number of chassis fan connectors

2

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

Chassis intrusion connector

Yes

ATX Power connector (24-pin)

Yes

RGB LED pin header

Yes

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

Number of water pump connectors

1

Number of RGB LED pin headers

3

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Supported processor sockets

Socket AM5

Parallel processing technology support

Not supported

HDMI version

2.1

Cooling type

Passive

Motherboard form factor

micro ATX

Component for

PC

Audio output channels

7.1 channels

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 10 x64, Windows 11

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

RAID levels

0, 1, 5, 10

Supported processor sockets

Socket AM5

Cooling type

Passive

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

Processor socket

Socket AM5

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Maximum internal memory

256 GB

Unbuffered memory

Yes

Supported memory clock speed (max)

8000 MHz

ECC сompatibility

ECC & Non-ECC

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, PCI Express 4.0, PCI Express 5.0, SATA III

RAID levels

0, 1, 5, 10

Number of storage drives supported

7

RAID support

Yes

Parallel processing technology support

Not supported

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

2

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

1

DisplayPort version

1.4

USB 2.0 ports quantity

4

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

PS/2 ports quantity

1

Microphone in

Yes

Headphone outputs

1

HDMI version

2.1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DVI-D ports quantity

0

DisplayPorts quantity

2

Line-in

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Ethernet interface type

2.5 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.3

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Supported processor sockets

Socket AM5

Cooling type

Passive

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Product colour

Grey

Number of M.2 (M) slots

3

PCI Express x1 (Gen 4.x) slots

1

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

3rd M.2 largest key size

2280

3rd M.2 highest PCI Express generation

4.0

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Power source type

ATX

Package width

275 mm

Package depth

275 mm

Package height

67.4 mm

Package weight

1.7 kg

Windows operating systems supported

Windows 10 x64, Windows 11

Package width

275 mm

Package depth

275 mm

Package height

67.4 mm

Package weight

1.7 kg

Weight

1.01 kg

Width

244 mm

Depth

244 mm

Quick installation guide

Yes

Cables included

SATA

Screws included

Yes

Antenna included

Yes

Package width

275 mm

Package depth

275 mm

Package height

67.4 mm

Package weight

1.7 kg

Weight

1.01 kg

Quick installation guide

Yes

PCI Express x1 (Gen 4.x) slots

1
