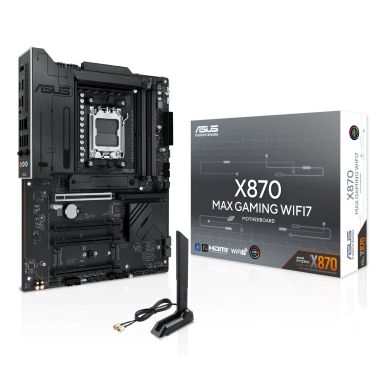

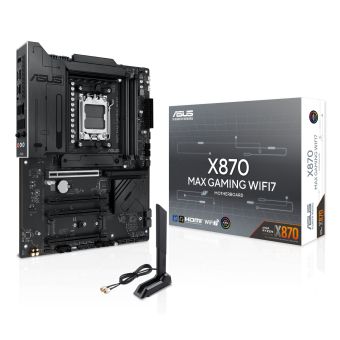

ASUS X870 MAX GAMING WIFI7 AMD X870 Socket AM5 ATX

Number of M.2 (M) slots

3

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

12V power connector

Yes

Supported storage drive interfaces

M.2, SATA III

USB 2.0 connectors

2

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

S/PDIF out connector

Yes

Number of SATA III connectors

4

Number of COM connectors

1

Number of chassis fan connectors

4

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

Chassis intrusion connector

Yes

ATX Power connector (24-pin)

Yes

USB 3.2 Gen 2x2 connectors

1

Number of CPU fan connectors

1

Motherboard chipset family

AMD

Motherboard chipset

AMD X870

Parallel processing technology support

Not supported

Motherboard form factor

ATX

Component for

PC

Audio output channels

7.1 channels

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 11

Motherboard chipset family

AMD

Motherboard chipset

AMD X870

RAID levels

0, 1, 5, 10

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Processor socket

Socket AM5

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Maximum internal memory

256 GB

Unbuffered memory

Yes

Supported memory clock speed (max)

8000 MHz

ECC сompatibility

ECC & Non-ECC

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 5, 10

Number of storage drives supported

7

RAID support

Yes

Parallel processing technology support

Not supported

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

1

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB connector type

USB Type-A, USB Type-C

USB 2.0 ports quantity

4

WiFi-AP antenna jack

2

VGA (D-Sub) ports quantity

0

Microphone in

Yes

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DVI-D ports quantity

0

USB4 Gen 3x2 ports quantity

2

Line-in

Yes

Ethernet LAN

Yes

Wi-Fi

Yes

Ethernet interface type

2.5 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.4

Top Wi-Fi standard

Wi-Fi 7 (802.11be)

Windows operating systems supported

Windows 11

Motherboard chipset family

AMD

Motherboard chipset

AMD X870

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Product colour

Multicolour

Number of M.2 (M) slots

3

PCI Express x16 (Gen 3.x) slots

1

PCI Express x16 (Gen 4.x) slots

2

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

Package width

353 mm

Package depth

273 mm

Package height

68 mm

Package weight

1.95 kg

Windows operating systems supported

Windows 11

Height

48 mm

Package width

353 mm

Package depth

273 mm

Package height

68 mm

Package weight

1.95 kg

Weight

1.36 kg

Width

305 mm

Depth

244 mm

Antenna included

Yes

Height

48 mm

Package width

353 mm

Package depth

273 mm

Package height

68 mm

Package weight

1.95 kg

Weight

1.36 kg
