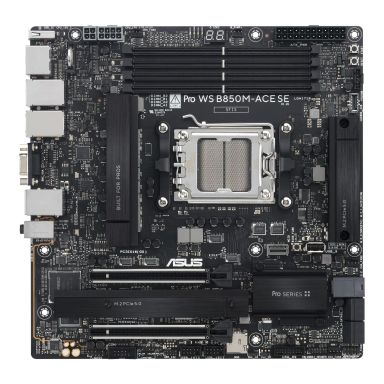

ASUS PRO WS B850M-ACE SE AMD B850 Socket AM5 micro ATX

Number of M.2 (M) slots

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

12V power connector

Yes

Supported storage drive interfaces

M.2, SATA III

USB 2.0 connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

Peripheral (Molex) power connectors (4-pin)

1

Number of SATA III connectors

4

Number of COM connectors

1

Number of chassis fan connectors

3

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

Chassis intrusion connector

Yes

ATX Power connector (24-pin)

Yes

Number of CPU fan connectors

1

Number of EPS power connectors (8-pin)

1

Number of water pump connectors

1

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Supported processor sockets

Socket AM5

Parallel processing technology support

Not supported

HDMI version

2.1

Cooling type

Passive

Motherboard form factor

micro ATX

Component for

PC

Audio output channels

7.1 channels

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 10 x64, Windows 11

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

RAID levels

0, 1, 5, 10

Supported processor sockets

Socket AM5

Cooling type

Passive

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Processor manufacturer

AMD

Compatible processor series

AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series

Supported processor sockets

Socket AM5

Processor socket

Socket AM5

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Maximum internal memory

256 GB

Unbuffered memory

Yes

Supported memory clock speed (max)

8000 MHz

ECC сompatibility

ECC & Non-ECC

Maximum internal memory per slot

64 GB

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 5, 10

Number of storage drives supported

6

RAID support

Yes

Parallel processing technology support

Not supported

Maximum resolution

7680 x 4320 pixels

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

DisplayPort version

1.4

USB 2.0 ports quantity

2

VGA (D-Sub) ports quantity

1

Headphone outputs

1

HDMI version

2.1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

3

DVI-D ports quantity

0

DisplayPorts quantity

1

Line-in

Yes

Ethernet LAN

Yes

Wi-Fi

No

Ethernet interface type

2.5 Gigabit Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet

Power source type

ATX

Windows operating systems supported

Windows 10 x64, Windows 11

Motherboard chipset family

AMD

Motherboard chipset

AMD B850

Supported processor sockets

Socket AM5

Cooling type

Passive

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Product colour

Black

Number of M.2 (M) slots

2

PCI Express x16 (Gen 4.x) slots

1

PCI Express x16 (Gen 5.x) slots

1

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

5.0

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

5.0

BIOS type

UEFI AMI

BIOS memory size

512 Mbit

Clear CMOS button

Yes

Power source type

ATX

Maximum resolution

7680 x 4320 pixels

Windows operating systems supported

Windows 10 x64, Windows 11

Width

244 mm

Depth

244 mm

Cables included

SATA

Screws included

Yes
