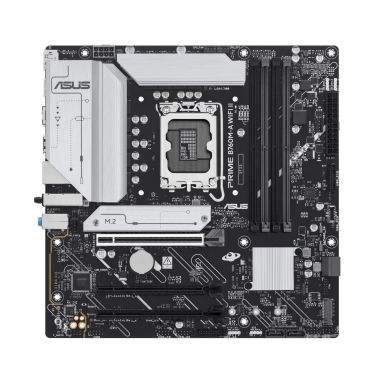

ASUS PRIME B760M-A WIFI II Intel B760 LGA 1700 micro ATX

Number of M.2 (M) slots

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

0

Front panel connector

Yes

12V power connector

Yes

Supported storage drive interfaces

M.2, SATA III

USB 2.0 connectors

3

USB 3.2 Gen 1 (3.1 Gen 1) connectors

3

TPM connector

Yes

S/PDIF out connector

Yes

Number of SATA III connectors

4

Number of COM connectors

1

Number of chassis fan connectors

2

Front panel audio connector

Yes

EPS power connector (8-pin)

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

RGB LED pin header

Yes

Motherboard chipset family

Intel

Motherboard chipset

Intel B760

Supported processor sockets

LGA 1700

Parallel processing technology support

Not supported

Motherboard form factor

micro ATX

Component for

PC

Audio output channels

7.1 channels

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Windows operating systems supported

Windows 10 x64, Windows 11

Motherboard chipset family

Intel

Motherboard chipset

Intel B760

RAID levels

0, 1, 5, 10

Supported processor sockets

LGA 1700

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Processor manufacturer

Intel

Compatible processor series

Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium® Gold

Supported processor sockets

LGA 1700

Processor socket

LGA 1700

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Supported memory clock speeds

7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz

Maximum internal memory

256 GB

Unbuffered memory

Yes

Supported memory clock speed (max)

7200 MHz

ECC сompatibility

Non-ECC

Number of HDDs supported

4

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 5, 10

Number of storage drives supported

6

RAID support

Yes

Parallel processing technology support

Not supported

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

2

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

4

WiFi-AP antenna jack

1

VGA (D-Sub) ports quantity

0

PS/2 ports quantity

1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DVI-D ports quantity

0

DisplayPorts quantity

1

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

Wi-Fi 6E (802.11ax)

Ethernet interface type

2.5 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.4

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Windows operating systems supported

Windows 10 x64, Windows 11

Motherboard chipset family

Intel

Motherboard chipset

Intel B760

Supported processor sockets

LGA 1700

Audio output channels

7.1 channels

Motherboard form factor

micro ATX

Component for

PC

Number of M.2 (M) slots

2

PCI Express x16 (Gen 4.x) slots

2

PCI Express x16 (Gen 5.x) slots

1

1st M.2 largest key size

2280

1st M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

2280

2nd M.2 highest PCI Express generation

4.0

3rd M.2 highest PCI Express generation

3.0

BIOS type

UEFI AMI

BIOS memory size

128 Mbit

Package width

275 mm

Package depth

275 mm

Package height

67.5 mm

Package weight

1.4 kg

Windows operating systems supported

Windows 10 x64, Windows 11

Package width

275 mm

Package depth

275 mm

Package height

67.5 mm

Package weight

1.4 kg

Width

244 mm

Depth

244 mm

Cables included

SATA

Screws included

Yes

Antenna included

Yes

Package width

275 mm

Package depth

275 mm

Package height

67.5 mm

Package weight

1.4 kg
