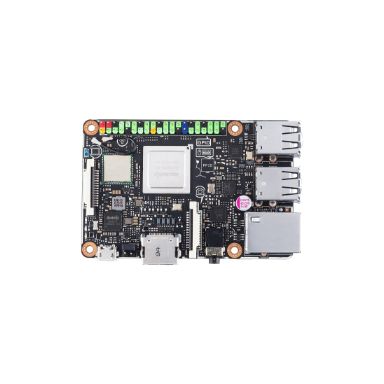

Asus Tinker Board S R2.0 Development Board Rockchip Rk3288
0 Reviews
| Add your review
In Stock
|
£115.62
£138.74 (Inc. VAT)
| Processor | |
|---|---|
| Processor model | Rockchip RK3288 |
| Processor cores | 4 |
| Processor manufacturer | Rockchip |
| Memory | |
| Maximum internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| Memory channels | Dual-channel |
| Compatible memory cards | MicroSD (TransFlash) |
| eMMC capacity | 16 GB |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Bluetooth version | 4.2+EDR |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b-802.11g-Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| USB version | 2.0 |
| USB ports quantity | 4 |
| Audio port type | 3.5mm |
| Bluetooth | Yes |
| HDMI ports quantity | 1 |
| UART | Yes |
| MPI DSI interface | Yes |
| MPI CSI interface | Yes |
| I2C interface | Yes |
| GPIO interface | Yes |
| Integrated LAN | Yes |
| S/PDIF out port | Yes |
| SPI interface | Yes |
| PCM interface | Yes |
| I2S interface | Yes |
| Features | |
| MultiVolt I/Os | 3.3-5 V |
| Weight & dimensions | |
| Width | 54 mm |
| Height | 85.5 mm |
| Weight | 55 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Asus Tinker Board S R2.0 Development Board Rockchip Rk3288
