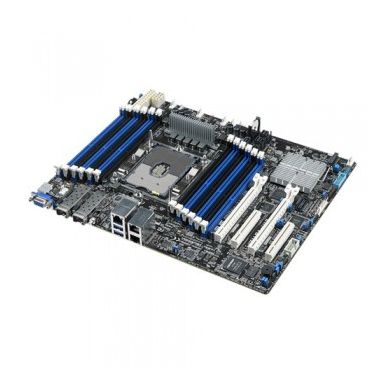

ASUS Z11PA-U12 server/workstation motherboard ATX Intel C621
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Technical details | |
|---|---|
| Motherboard chipset | Intel® C621 |
| Serial port headers | 1 |
| Parallel processing technology support | Not supported |
| Number of processors supported | 1 |
| Number of DIMM slots | 12 |
| Motherboard form factor | ATX |
| Component for | Server |
| Performance | |
| Motherboard chipset | Intel® C621 |
| RAID levels | 0- 1- 5- 10 |
| Motherboard form factor | ATX |
| Component for | Server |
| Processor | |
| Processor manufacturer | Intel |
| System bus rate | 10.4 GT/s |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Hexa-channel |
| Supported memory clock speeds | 2400-2666 MHz |
| Supported RDIMM clock speeds | 2400-2666 MHz |
| Supported RDIMM module capacity | 4GB- 8GB- 16GB- 32GB |
| Maximum internal memory | 1536 GB |
| Maximum RDIMM memory | 384 GB |
| Maximum UDIMM memory | 768 GB |
| Storage controllers | |
| Supported storage drive interfaces | Serial Attached SCSI (SAS) |
| RAID levels | 0- 1- 5- 10 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| Discrete graphics support | Yes |
| On-board graphics card model | Aspeed AST2500 |
| On-board graphics card memory | 64 MB |
| Internal I/O | |
| Supported storage drive interfaces | Serial Attached SCSI (SAS) |
| TPM connector | Yes |
| Serial port headers | 1 |
| Power fan connector | Yes |
| Number of SATA III connectors | 13 |
| EPS power connector (8-pin) | Yes |
| ATX Power connector (24-pin) | Yes |
| Integrated SAS ports | 2 |
| Rear panel I/O ports | |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Intel® I210-AT |
| Features | |
| Motherboard chipset | Intel® C621 |
| Motherboard form factor | ATX |
| Component for | Server |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| PCI Express x8 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Video | |
| Discrete graphics support | Yes |
| Packaging data | |
| Package weight | 1.62 kg |
| Weight & dimensions | |
| Package weight | 1.62 kg |
| Weight | 970 g |
| Width | 305 mm |
ASUS Z11PA-U12 server/workstation motherboard ATX Intel C621
