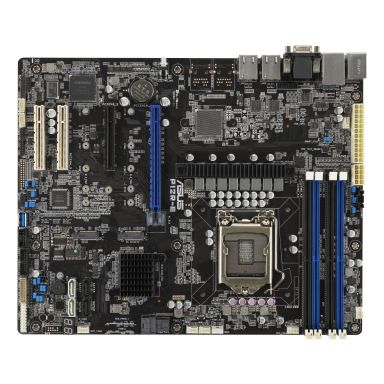

ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX
In Stock
|
£314.09
£376.91 (Inc. VAT)
get it next day (UK Mainland Orders)
Internal I/O
Number of M.2 (M) slots
2
Supported storage drive interfaces
M.2, SATA III
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Power fan connector
Yes
Number of SATA III connectors
8
Number of COM connectors
1
Chassis intrusion connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel C256
PC health monitoring
CPU, Fan
On-board graphics card
Yes
Motherboard form factor
ATX
Component for
Server
Performance
Number of HDDs supported
8
Supported storage drive types
HDD & SSD
Motherboard chipset family
Intel
Motherboard chipset
Intel C256
PC health monitoring
CPU, Fan
Motherboard form factor
ATX
Component for
Server
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Pentium®, Intel Xeon E
Processor socket
LGA 1200 (Socket H5)
Memory
Number of memory slots
4
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Supported memory clock speeds
2666,2933,3200 MHz
Supported memory module capacities
8GB, 16GB, 32GB
Maximum internal memory
128 GB
Supported memory clock speed (max)
3200 MHz
Storage controllers
Number of HDDs supported
8
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of storage drives supported
10
RAID support
Yes
Graphics
On-board graphics card
Yes
Graphics card family
ASPEED
On-board graphics card model
Aspeed AST2600
On-board graphics card memory
64 MB
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
VGA (D-Sub) ports quantity
1
PS/2 ports quantity
1
HDMI ports quantity
1
Ethernet LAN (RJ-45) ports
2
DVI-D ports quantity
0
Network
Ethernet LAN
Yes
Wi-Fi
No
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset family
Intel
Motherboard chipset
Intel C256
PC health monitoring
CPU, Fan
Motherboard form factor
ATX
Component for
Server
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
2
PCI Express x8 (Gen 3.x) slots
2
PCI Express x16 (Gen 4.x) slots
1
PCI Express x8 (Gen 4.x) slots
1
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 50 °C
Storage relative humidity (H-H)
20 - 90%
Video
Graphics card family
ASPEED
Packaging data
Package width
341 mm
Package depth
281 mm
Package height
78 mm
Package weight
1.5 kg
Logistics data
Harmonized System (HS) code
84733020
Weight & dimensions
Height
68 mm
Package width
341 mm
Package depth
281 mm
Package height
78 mm
Package weight
1.5 kg
Weight
800 g
Width
305 mm
Depth
244 mm
Other features
Height
68 mm
Package width
341 mm
Package depth
281 mm
Package height
78 mm
Package weight
1.5 kg
PCI Express x8 (Gen 3.x) slots
2
Weight
800 g
ASUS P12R-E Intel C256 LGA 1200 (Socket H5) ATX
| Length | 28.1 cm |
| Width | 34.1 cm |
| Height | 7.8 cm |
| Weight | 1.50 kgs |
