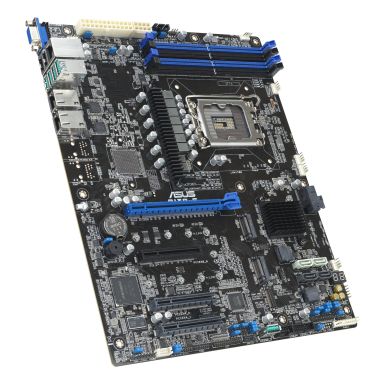

ASUS P13R-E Intel C266 LGA 1700 ATX

Number of M.2 (M) slots

2

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

12V power connector

Yes

Supported storage drive interfaces

PCI Express 4.0, SATA III

USB 2.0 connectors

1

USB 3.2 Gen 1 (3.1 Gen 1) connectors

1

TPM connector

Yes

Number of SATA III connectors

8

Number of COM connectors

1

Number of chassis fan connectors

6

EPS power connector (8-pin)

Yes

Chassis intrusion connector

Yes

ATX Power connector (24-pin)

Yes

Number of EPS power connectors (8-pin)

1

Motherboard chipset family

Intel

Motherboard chipset

Intel C266

Supported processor sockets

LGA 1700

PC health monitoring

CPU, Fan, Temperature

Parallel processing technology support

Not supported

Cooling type

Passive

Motherboard form factor

ATX

Component for

Server

Number of HDDs supported

8

Supported storage drive types

HDD & SSD

Motherboard chipset family

Intel

Motherboard chipset

Intel C266

Supported processor sockets

LGA 1700

PC health monitoring

CPU, Fan, Temperature

Cooling type

Passive

Motherboard form factor

ATX

Component for

Server

Processor manufacturer

Intel

Compatible processor series

Intel® Pentium®, Intel Xeon 6300, Intel Xeon E

Supported processor sockets

LGA 1700

Processor socket

LGA 1700

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR5-SDRAM

Memory channels

Dual-channel

Supported memory clock speeds

3600,4000,4400 MHz

Maximum internal memory

128 GB

Supported memory clock speed (max)

4400 MHz

ECC сompatibility

ECC

Maximum internal memory per slot

32 GB

Number of HDDs supported

8

Supported storage drive types

HDD & SSD

Supported storage drive interfaces

PCI Express 4.0, SATA III

Number of storage drives supported

10

Parallel processing technology support

Not supported

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

USB 2.0 ports quantity

2

VGA (D-Sub) ports quantity

1

HDMI ports quantity

0

Ethernet LAN (RJ-45) ports

2

DVI-D ports quantity

0

Ethernet LAN

Yes

Wi-Fi

No

Ethernet interface type

Gigabit Ethernet

Power source type

ATX

Motherboard chipset family

Intel

Motherboard chipset

Intel C266

Supported processor sockets

LGA 1700

PC health monitoring

CPU, Fan, Temperature

Cooling type

Passive

Motherboard form factor

ATX

Component for

Server

Product colour

Black

Number of M.2 (M) slots

2

PCI Express x16 (Gen 5.x) slots

1

PCI Express x4 (Gen 4.x) slots

2

PCI Express x8 (Gen 5.x) slots

1

1st M.2 largest key size

22110

1st M.2 highest PCI Express generation

4.0

2nd M.2 largest key size

22110

2nd M.2 highest PCI Express generation

4.0

Power source type

ATX

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

10 - 50 °C

Storage relative humidity (H-H)

20 - 90%

Package width

341 mm

Package depth

281 mm

Package height

78 mm

Package weight

1.5 kg

Height

68 mm

Package width

341 mm

Package depth

281 mm

Package height

78 mm

Package weight

1.5 kg

Weight

800 g

Width

305 mm

Depth

244 mm

Height

68 mm

Package width

341 mm

Package depth

281 mm

Package height

78 mm

Package weight

1.5 kg

Weight

800 g
