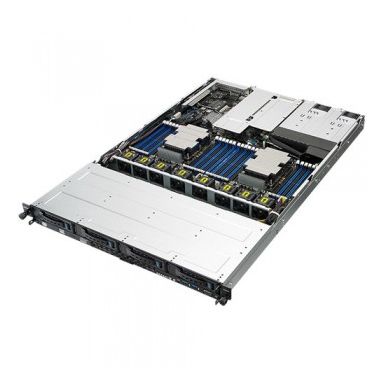

ASUS RS700-E9-RS4 Intel C621 LGA 3647 Rack (1U) Stainless steel
0 Reviews
| Add your review
In Stock
|
Call For Price
(0808 189 1246)
| Hard drive | |
|---|---|
| RAID levels | 0- 1- 5- 10 |
| Hot-swap HDD bays | Yes |
| Software | |
| Processor | |
| Built-in processor | No |
| System bus rate | 10.4 GT/s |
| Processor socket | LGA 3647 (Socket P) |
| Processor family | Intel® Xeon® |
| Number of processors supported | 2 |
| Motherboard chipset | Intel® C621 |
| Design | |
| 80 PLUS certification | 80 PLUS Platinum |
| Redundant fans support | Yes |
| Rack rails | Yes |
| LED indicators | Yes |
| Heat sink included | Yes |
| Product colour | Stainless steel |
| Chassis type | Rack (1U) |
| Memory | |
| Supported UDIMM clock speeds | 2400 MHz |
| Supported RDIMM clock speeds | 2400-2666 MHz |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 4GB- 8GB- 16GB- 32GB- 64GB |
| Number of DIMM slots | 24 |
| Maximum RDIMM memory | 3072 GB |
| Storage | |
| Number of storage drives supported | 6 |
| RAID levels | 0- 1- 5- 10 |
| Hot-swap HDD bays | Yes |
| Storage drive sizes supported | 3.5" |
| Performance | |
| Intel Rapid Storage Technology enterprise | Yes |
| Graphics | |
| On-board graphics card model | Aspeed AST2500 |
| On-board graphics card memory | 64 MB |
| Network | |
| LAN controller | Intel I350-BT2 |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Number of SATA III connectors | 10 |
| VGA (D-Sub) ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 3 |
| Expansion slots | |
| PCI Express x8 slots | 1 |
| PCI Express x16 slots | 2 |
| Features | |
| Harmonized System (HS) code | 84714100 |
| Technical details | |
| Number of storage drives supported | 6 |
| Redundant fans support | Yes |
| Rack rails | Yes |
| Heat sink included | Yes |
| Chassis type | Rack (1U) |
| Harmonized System (HS) code | 84714100 |
| Colour | |
| Product colour | Stainless steel |
| Indication | |
| LED indicators | Yes |
| Processor special features | |
| Intel Rapid Storage Technology enterprise | Yes |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Input current | 9.4 A |
| DC output current (+5 V) | 3.5 A |
| DC output current (+12 V) | 3.5 A |
| Number of redundant power supplies installed | 1 |
| Number of main power supplies | 1 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 800 W |
| 80 PLUS certification | 80 PLUS Platinum |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Weight & dimensions | |
| Width | 444 mm |
| Weight | 16.5 kg |
| Height | 44 mm |
| Depth | 686 mm |
ASUS RS700-E9-RS4 Intel C621 LGA 3647 Rack (1U) Stainless steel
