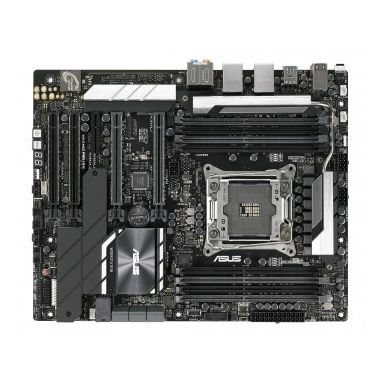

ASUS WS C422 PRO-SE server-workstation motherboard ATX
In Stock
|
Call For Price
(0808 189 1246)
Internal I/O
Number of M.2 (M) slots
2
Thunderbolt headers
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Supported storage drive interfaces
SATA III
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
6
Number of EATX power connectors
1
Number of COM connectors
1
Number of chassis fan connectors
2
CPU fan connector
Yes
Technical details
Motherboard chipset
Intel® C422
Parallel processing technology support
3-Way CrossFireX-3-Way SLI
Number of processors supported
3
Number of DIMM slots
8
Motherboard form factor
ATX
Audio
Audio output channels
8.1 channels
Performance
Motherboard chipset
Intel® C422
RAID levels
0-1-10
Audio output channels
8.1 channels
Motherboard form factor
ATX
Processor
Processor manufacturer
Intel
Processor socket
LGA 2066 (Socket R4)
Processor number of cores supported
28
Memory
Number of memory slots
8
Memory slots type
DIMM
Supported memory types
DDR4-SDRAM
Memory channels
Quad-channel
Supported memory clock speeds
2133-2400-2666 MHz
Maximum internal memory
512 GB
Storage controllers
Supported storage drive interfaces
SATA III
RAID levels
0-1-10
RAID support
Yes
Graphics
Parallel processing technology support
3-Way CrossFireX-3-Way SLI
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
4
S/PDIF out port
Yes
Microphone in
Yes
Ethernet LAN (RJ-45) ports
2
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel® I210-AT
Ethernet interface type
Gigabit Ethernet
Features
Motherboard chipset
Intel® C422
Audio output channels
8.1 channels
Motherboard form factor
ATX
Audio chip
Realtek ALC S1220A
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 dual x8/x8 mode
Yes
PCI Express x16 (Gen 3.x) @ dual x8/x8 mode slots
1
PCI Express x4 (Gen 3.x) slots
1
PCI Express x16 (Gen 3.x) slots
2
BIOS
BIOS type
UEFI
Clear CMOS button
Yes
Packaging data
Package weight
7.49 kg
Weight & dimensions
Package weight
7.49 kg
Weight
4.86 kg
Width
305 mm
Depth
244 mm
Other features
PCI Express x16 dual x8/x8 mode
Yes
Package weight
7.49 kg
PCI Express x4 (Gen 3.x) slots
1
Weight
4.86 kg
Audio output
Yes
Number of processors supported
3
Number of DIMM slots
8
ASUS WS C422 PRO-SE server-workstation motherboard ATX
