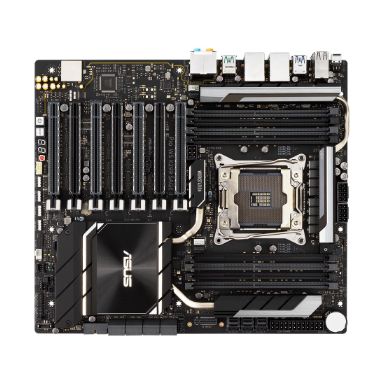

Asus Pro Ws X299 Sage Ii X299 Lga 2066 Socket R4 Ceb
In Stock
|
$685.38
$822.46 (Inc. VAT)
Internal I/O
Number of M.2 (M) slots
2
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Supported storage drive interfaces
SATA
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
TPM connector
Yes
Number of SATA III connectors
8
Number of COM connectors
1
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
CPU fan connector
Yes
ATX Power connector (24-pin)
Yes
Technical details
Motherboard chipset family
Intel
Motherboard chipset
Intel® X299
Trusted Platform Module (TPM)
Yes
Parallel processing technology support
4-Way CrossFireX- 4-Way SLI
Number of processors supported
1
Number of DIMM slots
8
Motherboard form factor
CEB
Component for
Workstation
Audio
Audio output channels
7.1 channels
Performance
Motherboard chipset family
Intel
Motherboard chipset
Intel® X299
RAID levels
0- 1- 5- 10
Trusted Platform Module (TPM)
Yes
Audio output channels
7.1 channels
Motherboard form factor
CEB
Component for
Workstation
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Core⢠X-series
Processor socket
LGA 2066 (Socket R4)
Processor number of cores supported
6- 8- 10- 12- 14- 16- 18
Memory
Number of memory slots
4
Supported memory types
DDR4-SDRAM
Non-ECC
Yes
Supported memory clock speeds
2400-2666-2933-3600-4000-4133-4200-4266 MHz
Maximum internal memory
256 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive interfaces
SATA
RAID levels
0- 1- 5- 10
RAID support
Yes
Graphics
Parallel processing technology support
4-Way CrossFireX- 4-Way SLI
Rear panel I/O ports
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB 2.0 ports quantity
4
Headphone outputs
1
Ethernet LAN (RJ-45) ports
2
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I225-LM
Ethernet interface type
2.5 Gigabit Ethernet
Features
Motherboard chipset family
Intel
Motherboard chipset
Intel® X299
Compatible operating systems
Windows 10 64-bit
Audio output channels
7.1 channels
Motherboard form factor
CEB
Component for
Workstation
Harmonized System (HS) code
84733020
Expansion slots
Number of M.2 (M) slots
2
PCI Express x16 (Gen 3.x) slots
7
BIOS
Clear CMOS button
Yes
Processor special features
Trusted Platform Module (TPM)
Yes
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
10 - 35 °C
Storage relative humidity (H-H)
20 - 90%
Logistics data
Harmonized System (HS) code
84733020
Weight & dimensions
Height
287 mm
Weight
2.3 kg
Width
305 mm
Depth
267 mm
Packaging content
Cables included
SATA
Other features
Height
287 mm
Weight
2.3 kg
Number of processors supported
1
Number of DIMM slots
8
Compatible operating systems
Windows 10 64-bit
Asus Pro Ws X299 Sage Ii X299 Lga 2066 Socket R4 Ceb
