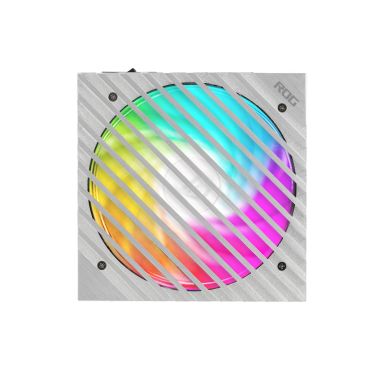

ASUS ROG Loki SFX-L 850W Platinum power supply unit
In Stock
|
Call For Price
(0808 189 1246)
Cooling
Fan diameter
12 cm
Number of fans
1 fan(s)
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
SFX-L
80 PLUS certification
80 PLUS Platinum
Purpose
PC
Bearing technology
Ball bearing
Supported motherboard form factors
ATX
Design
80 PLUS certification
80 PLUS Platinum
Product colour
White
Fan diameter
12 cm
On/off switch
Yes
Number of fans
1 fan(s)
Illumination
Yes
Cooling type
Active
Power
Total power
850 W
AC input voltage
100 - 240 V
Combined power (+3.3V)
110 W
Combined power (+12V)
850 W
Combined power (+5V)
110 W
Combined power (-12V)
9.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
20 A
Max output current (+12V)
70.8 A
Max output current (+5V)
20 A
Max output current (-12V)
0.8 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over power- Over voltage- Overcharge- Overheating- Short circuit- Under voltage
Ports & interfaces
Motherboard power cable length
45 cm
SATA power cable length
600 mm
Peripheral (Molex) power cable length
600 mm
PCI Express power cable length
45 cm
CPU power cable length
55 cm
Motherboard power connector
24-pin ATX
Number of SATA power connectors
6
Peripheral (Molex) power connectors (4-pin)
4
PCI Express power connectors (8-pin)
3
CPU power connector (4+4 pin)
Yes
Cabling type
Modular
PCI Express power connectors (16-pin)
1
Weight & dimensions
Width
125 mm
Depth
125 mm
Height
63.5 mm
Weight
1.81 kg
Packaging data
Package depth
190 mm
Package width
285 mm
Package height
100 mm
Package type
Box
Package weight
2.5 kg
Technical details
Sustainability compliance
Yes
Sustainability certificates
RoHS
Certificates
80 PLUS certification
80 PLUS Platinum
ASUS ROG Loki SFX-L 850W Platinum power supply unit
