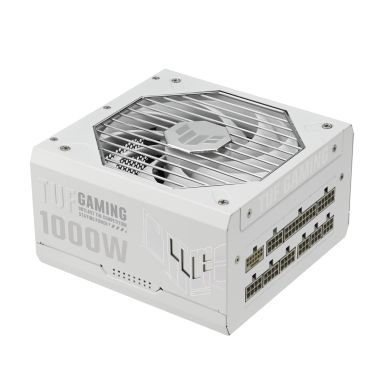

ASUS TUF Gaming 1000W Gold White Edition power supply unit 20+4 pin ATX ATX
In Stock
|
Call For Price
(0808 189 1246)
Cooling
Fan diameter
13.5 cm
Number of fans
1 fan(s)
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
Purpose
PC
ATX version
3.0
Bearing technology
Ball bearing
Design
80 PLUS certification
80 PLUS Gold
Product colour
White
Fan diameter
13.5 cm
On/off switch
Yes
Number of fans
1 fan(s)
Cooling type
Active
Power
Total power
1000 W
AC input voltage
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
130 W
Combined power (+12V)
1000 W
Combined power (+5V)
130 W
Combined power (-12V)
9.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
25 A
Max output current (+12V)
83.3 A
Max output current (+5V)
25 A
Max output current (-12V)
0.8 A
Max output current (+5Vsb)
3 A
Power protection features
Over power, Over voltage, Overcharge, Overheating, Short circuit, Under power, Under voltage
Efficiency
92%
Ports & interfaces
Motherboard power cable length
61 cm
SATA power cable length
120,400 mm
Peripheral (Molex) power cable length
150,400 mm
PCI Express power cable length
67.5 cm
CPU power cable length
65 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
5
Peripheral (Molex) power connectors (4-pin)
4
PCI Express power connectors (8-pin)
4
CPU power connector (4+4 pin)
Yes
ATX power connector (20+4 pin)
Yes
Cabling type
Fully-Modular
PCI Express power connectors (16-pin)
1
Packaging content
Cables included
AC, CPU, PCIe, Peripheral (Molex), SATA
Cable tie(s) included
Yes
Weight & dimensions
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
2.48 kg
Packaging data
Cables included
AC, CPU, PCIe, Peripheral (Molex), SATA
Package depth
200 mm
Package width
310 mm
Package height
108 mm
Package type
Box
Package weight
3.17 kg
Technical details
Sustainability compliance
Yes
Sustainability certificates
RoHS
Compliance certificates
RoHS
Certificates
80 PLUS certification
80 PLUS Gold
ASUS TUF Gaming 1000W Gold White Edition power supply unit 20+4 pin ATX ATX
