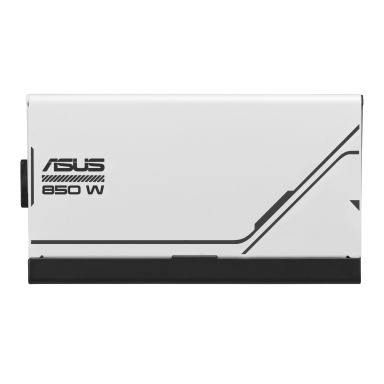

ASUS AP-850G power supply unit 850 W 20+4 pin ATX ATX Black, White
In Stock
|
£94.74
£113.69 (Inc. VAT)
get it next day (UK Mainland Orders)
ASUS AP-850G power supply unit 850 W 20+4 pin ATX ATX Black, White
Write Your Own Review
Cooling
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Design
80 PLUS certification
80 PLUS Gold
Product colour
Black, White
Number of fans
1 fan(s)
Illumination
Yes
Fan location
Top
Cooling type
Active
Power
Total power
850 W
AC input voltage
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
110 W
Combined power (+12V)
846 W
Combined power (+5V)
110 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
20 A
Max output current (+12V)
70.5 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length
61 cm
SATA power cable length
400,120 mm
Peripheral (Molex) power cable length
400,150 mm
PCI Express power cable length
67.5 cm
CPU power cable length
65 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
5
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (8-pin)
3
CPU power connector (4+4 pin)
Yes
Cabling type
Fully-Modular
PCI Express power connectors (16-pin)
1
Performance
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Gold
Purpose
PC
ATX version
3.0
Mean time between failures (MTBF)
120000 h
Certificates
Compliance certificates
RoHS
80 PLUS certification
80 PLUS Gold
Packaging content
Cables included
CPU, PCIe, SATA, Peripheral (Molex)
Weight & dimensions
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
1.5 kg
Packaging data
Cables included
CPU, PCIe, SATA, Peripheral (Molex)
Package depth
208 mm
Package width
346 mm
Package height
144 mm
Package type
Box
Package weight
2.92 kg
Technical details
Compliance certificates
RoHS
| Weight | 2.92 kgs |
