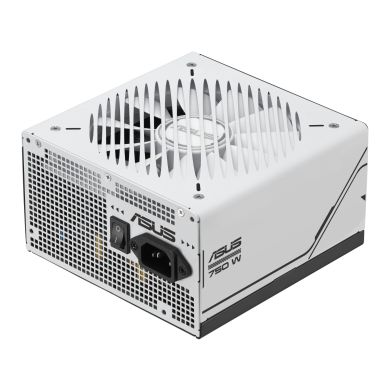

ASUS Prime AP-750G power supply unit 750 W 20+4 pin ATX ATX Black, White

Cooling type

Active

On/off switch

Yes

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Gold

Purpose

PC

ATX version

3.0

Mean time between failures (MTBF)

120000 h

Bearing technology

Ball bearing

80 PLUS certification

80 PLUS Gold

Product colour

Black, White

On/off switch

Yes

Cooling type

Active

Total power

750 W

AC input voltage

100 - 240 V

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

110 W

Combined power (+12V)

744 W

Combined power (+5V)

110 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

12.5 W

Max output current (+3.3V)

20 A

Max output current (+12V)

62 A

Max output current (+5V)

20 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

2.5 A

Power protection features

Over power, Over voltage, Overcharge, Overheating, Short circuit, Under voltage

Efficiency

92%

Motherboard power cable length

61 cm

SATA power cable length

120,400 mm

Peripheral (Molex) power cable length

150,400 mm

CPU power cable length

65 cm

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

5

Peripheral (Molex) power connectors (4-pin)

3

PCI Express power connectors (8-pin)

3

CPU P4 connector (4-pin)

2

CPU power connector (4+4 pin)

Yes

ATX power connector (20+4 pin)

Yes

Cabling type

Fully-Modular

PCI Express power connectors (16-pin)

1

Cables included

AC, CPU, PCIe, Peripheral (Molex), SATA

Width

150 mm

Depth

150 mm

Height

86 mm

Weight

1.47 kg

Cables included

AC, CPU, PCIe, Peripheral (Molex), SATA

Package depth

208 mm

Package width

346 mm

Package height

144 mm

Package type

Box

Package weight

2.88 kg

80 PLUS certification

80 PLUS Gold
