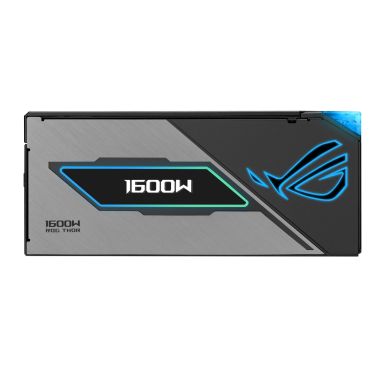

ASUS ROG -THOR-1600T3-GAMING power supply unit 1600 W 20+4 pin ATX ATX Grey

Number of fans

1 fan(s)

Cooling type

Active

On/off switch

Yes

Power supply unit (PSU) form factor

ATX

Silent mode

Yes

80 PLUS certification

80 PLUS Titanium

Purpose

PC

ATX version

3.1

Mean time between failures (MTBF)

120000 h

Bearing technology

DBB

80 PLUS certification

80 PLUS Titanium

Product colour

Grey

On/off switch

Yes

Number of fans

1 fan(s)

Illumination

Yes

Cooling type

Active

Built-in display

Yes

Display type

OLED

Total power

1600 W

AC input voltage

100 - 240 V

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

125 W

Combined power (+12V)

1600 W

Combined power (+5V)

125 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

30 A

Max output current (+12V)

133.3 A

Max output current (+5V)

25 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

3 A

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

Motherboard power cable length

61 cm

SATA power cable length

120,400 mm

Peripheral (Molex) power cable length

150,400 mm

PCI Express power cable length

75 cm

CPU power cable length

100 cm

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

10

Peripheral (Molex) power connectors (4-pin)

9

PCI Express power connectors (6+2 pin)

4

CPU power connector (4+4 pin)

Yes

Cabling type

Fully-Modular

PCI Express power connectors (16-pin)

2

Cables included

CPU, PCIe, Peripheral (Molex), SATA

Cable tie(s) included

Yes

Width

200 mm

Depth

150 mm

Height

86 mm

Weight

2.8 kg

Cables included

CPU, PCIe, Peripheral (Molex), SATA

Package depth

251 mm

Package width

390 mm

Package height

159 mm

Package type

Box

Package weight

6.3 kg

80 PLUS certification

80 PLUS Titanium
