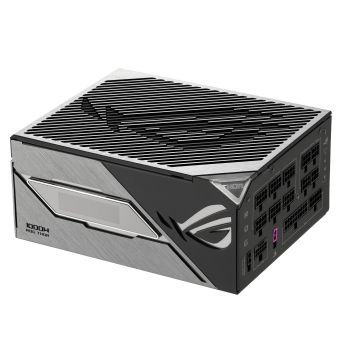

ASUS ROG -THOR-1000P3-GAMING power supply unit 1000 W 20+4 pin ATX ATX Black

Number of fans

1 fan(s)

Fan location

Top

Cooling type

Active

80 PLUS certification

80 PLUS Platinum

Product colour

Black

Number of fans

1 fan(s)

Illumination

Yes

Fan location

Top

Cooling type

Active

Total power

1000 W

AC input voltage

100 - 240 V

Power Factor Correction (PFC) type

Active

Combined power (+3.3V)

125 W

Combined power (+12V)

1000 W

Combined power (+5V)

125 W

Combined power (-12V)

3.6 W

Combined power (+5Vsb)

15 W

Max output current (+3.3V)

30 A

Max output current (+12V)

83.33 A

Max output current (+5V)

25 A

Max output current (-12V)

0.3 A

Max output current (+5Vsb)

3 A

Power protection features

Over current, Over power, Over voltage, Overheating, Short circuit, Under power

Motherboard power cable length

61 cm

SATA power cable length

400,120 mm

Peripheral (Molex) power cable length

400,150 mm

PCI Express power cable length

75 cm

CPU power cable length

100 cm

Motherboard power connector

20+4 pin ATX

Number of SATA power connectors

7

Peripheral (Molex) power connectors (4-pin)

6

PCI Express power connectors (6+2 pin)

4

CPU power connector (4+4 pin)

Yes

Cabling type

Fully-Modular

PCI Express power connectors (16-pin)

1

Power supply unit (PSU) form factor

ATX

80 PLUS certification

80 PLUS Platinum

Purpose

PC

ATX version

3.1

Mean time between failures (MTBF)

120000 h

Bearing technology

DBB

Cables included

CPU, PCIe, SATA, Peripheral (Molex)

Width

190 mm

Depth

150 mm

Height

86 mm

Weight

2.37 kg

Cables included

CPU, PCIe, SATA, Peripheral (Molex)

Package depth

241 mm

Package width

379 mm

Package height

127 mm

Package type

Box

Package weight

5.08 kg

80 PLUS certification

80 PLUS Platinum
