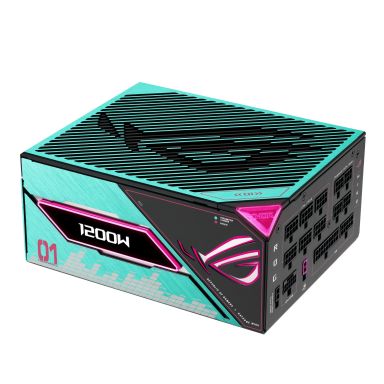

ASUS ROG -THOR-1200P3-MIKU power supply unit 1200 W 20+4 pin ATX ATX Multicolour
In Stock
|
Call For Price (0808 189 1246)
Cooling
Cooling type
Active
Design
80 PLUS certification
80 PLUS Platinum
Product colour
Multicolour
Illumination
Yes
Cooling type
Active
Power
Total power
1200 W
AC input voltage
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
125 W
Combined power (+12V)
1200 W
Combined power (+5V)
125 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
15 W
Max output current (+3.3V)
30 A
Max output current (+12V)
100 A
Max output current (+5V)
25 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
3 A
Power protection features
Overheating, Over current, Over power, Over voltage, Short circuit, Under power
Ports & interfaces
Motherboard power cable length
61 cm
SATA power cable length
400,120 mm
Peripheral (Molex) power cable length
400,150 mm
PCI Express power cable length
75 cm
CPU power cable length
100 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
7
Peripheral (Molex) power connectors (4-pin)
6
PCI Express power connectors (6+2 pin)
4
CPU power connector (4+4 pin)
Yes
Cabling type
Fully-Modular
PCI Express power connectors (16-pin)
1
Performance
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Platinum
Purpose
PC
ATX version
3.1
Mean time between failures (MTBF)
120000 h
Bearing technology
DBB
Packaging content
Cables included
CPU, PCIe, SATA, Peripheral (Molex)
Packaging content
Power cord x 1 Motherboard power cable x 1 (610mm) CPU cable x 2 (1000mm) PCI-E Gen 5 16-pin cable x 1 (750mm) PCI-E cable 1-to-1 x 4 (750mm) SATA cable 1-to-4 x 1 (400+120+120+120mm) SATA cable 1-to-3 x 1 (400+120+120mm) Peripheral cable 1-to-3 x 2 (400+150+150mm) Addressable RGB cable x 1 (800mm) ROG sticker x 1 ROG cable tie x 6 Chassis screws package x 1 Cable tie x 12 Thank you card x 1 User manual x 1
Weight & dimensions
Width
190 mm
Depth
150 mm
Height
86 mm
Weight
2.37 kg
Packaging data
Cables included
CPU, PCIe, SATA, Peripheral (Molex)
Package depth
241 mm
Package width
379 mm
Package height
127 mm
Package type
Box
Package weight
5.21 kg
Certificates
80 PLUS certification
80 PLUS Platinum
ASUS ROG -THOR-1200P3-MIKU power supply unit 1200 W 20+4 pin ATX ATX Multicolour
| Length | 24.1 cm |
| Width | 37.9 cm |
| Height | 12.7 cm |
| Weight | 5.21 kgs |
