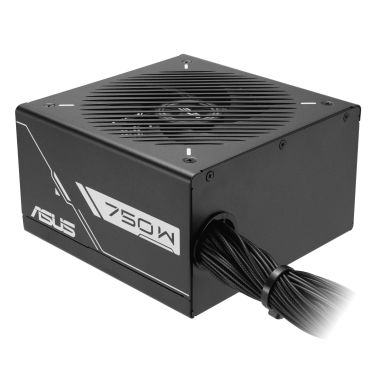

ASUS Prime -750B-BLACK power supply unit 750 W 20+4 pin ATX ATX
In Stock
|
£62.99
£75.59 (Inc. VAT)
get it next day (UK Mainland Orders)
Cooling
Fan diameter
13.5 cm
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Performance
On/off switch
Yes
Power supply unit (PSU) form factor
ATX
80 PLUS certification
80 PLUS Bronze
Purpose
PC
Mean time between failures (MTBF)
120000 h
Bearing technology
Ball bearing
Design
80 PLUS certification
80 PLUS Bronze
Product colour
Black
Fan diameter
13.5 cm
On/off switch
Yes
Number of fans
1 fan(s)
Fan location
Top
Cooling type
Active
Power
Total power
750 W
AC input voltage
100 - 240 V
Power Factor Correction (PFC) type
Active
Combined power (+3.3V)
120 W
Combined power (+12V)
750 W
Combined power (+5V)
120 W
Combined power (-12V)
3.6 W
Combined power (+5Vsb)
12.5 W
Max output current (+3.3V)
20 A
Max output current (+12V)
62.5 A
Max output current (+5V)
20 A
Max output current (-12V)
0.3 A
Max output current (+5Vsb)
2.5 A
Power protection features
Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power cable length
60 cm
SATA power cable length
120,400 mm
Peripheral (Molex) power cable length
120,400 mm
CPU power cable length
80 cm
Motherboard power connector
20+4 pin ATX
Number of SATA power connectors
6
Peripheral (Molex) power connectors (4-pin)
3
PCI Express power connectors (8-pin)
3
CPU power connector (4+4 pin)
Yes
Cabling type
Non-Modular
Weight & dimensions
Width
150 mm
Depth
150 mm
Height
86 mm
Weight
1.92 kg
Packaging data
Package depth
196 mm
Package width
340 mm
Package height
115 mm
Package type
Box
Package weight
3 kg
Certificates
80 PLUS certification
80 PLUS Bronze
ASUS Prime -750B-BLACK power supply unit 750 W 20+4 pin ATX ATX
| Length | 19.6 cm |
| Width | 34 cm |
| Height | 11.5 cm |
| Weight | 3.00 kgs |
