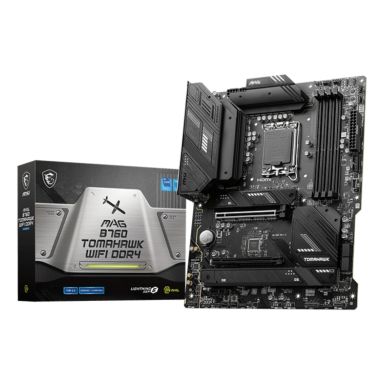

MSI MAG B760 TOMAHAWK WIFI DDR4 motherboard Intel B760 LGA 1700 ATX

Number of M.2 (M) slots

3

USB 3.2 Gen 2 (3.1 Gen 2) connectors

1

Front panel connector

Yes

Supported storage drive interfaces

M.2, SATA III

USB 2.0 connectors

4

USB 3.2 Gen 1 (3.1 Gen 1) connectors

2

mSATA ports quantity

0

TPM connector

Yes

S/PDIF out connector

Yes

Number of SATA connectors

0

Number of SATA III connectors

4

Number of SATA II connectors

0

Front panel audio connector

Yes

CPU fan connector

Yes

ATX Power connector (24-pin)

Yes

RGB LED pin header

Yes

Motherboard chipset family

Intel

Motherboard chipset

Intel B760

Supported processor sockets

LGA 1700

Parallel processing technology support

Not supported

On-board graphics card

No

HDMI version

2.1

Motherboard form factor

ATX

Component for

PC

Audio output channels

7.1 channels

Windows operating systems supported

Windows 10, Windows 11

Motherboard chipset family

Intel

Motherboard chipset

Intel B760

RAID levels

0, 1, 5, 10

Supported processor sockets

LGA 1700

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Processor manufacturer

Intel

Compatible processor series

Intel® Celeron®, Intel® Pentium® Gold

Supported processor sockets

LGA 1700

Maximum number of SMP processors

1

Processor socket

LGA 1700

Number of memory slots

4

Memory slots type

DIMM

Supported memory types

DDR4-SDRAM

Memory channels

Dual-channel

Supported memory clock speeds

2133,2400,2666,2933,3200,3333,3400,3466,3600,3733,3800,4000,4400,4600,4800,5000,5066,5200,5333 MHz

Maximum internal memory

128 GB

Supported memory clock speed (max)

5333 MHz

ECC сompatibility

Non-ECC

Supported storage drive interfaces

M.2, SATA III

RAID levels

0, 1, 5, 10

RAID support

Yes

Parallel processing technology support

Not supported

On-board graphics card

No

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

0

USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity

0

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity

4

USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity

0

DisplayPort version

1.4

USB 2.0 ports quantity

4

VGA (D-Sub) ports quantity

0

HDMI version

2.1

HDMI ports quantity

1

Ethernet LAN (RJ-45) ports

1

DVI-D ports quantity

0

DisplayPorts quantity

1

USB 3.2 Gen 2x2 Type-C ports quantity

1

Ethernet LAN

Yes

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)

Ethernet interface type

2.5 Gigabit Ethernet

Bluetooth

Yes

Bluetooth version

5.3

Top Wi-Fi standard

Wi-Fi 6E (802.11ax)

Power source type

ATX

Windows operating systems supported

Windows 10, Windows 11

Motherboard chipset family

Intel

Motherboard chipset

Intel B760

Supported processor sockets

LGA 1700

Audio output channels

7.1 channels

Motherboard form factor

ATX

Component for

PC

Audio chip

Realtek ALC897

Product colour

Black

Number of M.2 (M) slots

3

PCI slots

0

PCI Express x16 slots

2

PCI Express x1 slots

1

BIOS type

UEFI AMI

BIOS memory size

256 Mbit

ACPI version

6.4

System Management BIOS (SMBIOS) version

3.5

Power source type

ATX

Windows operating systems supported

Windows 10, Windows 11

Width

243.8 mm

Depth

304.8 mm

mSATA ports quantity

0
