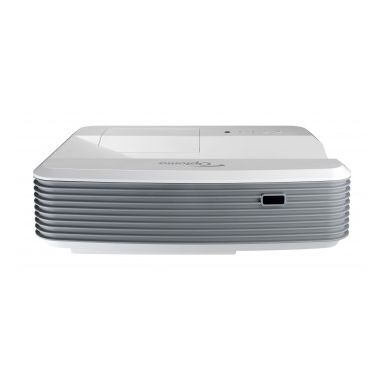

Optoma Projector EH320USTi
In Stock
|
Call For Price
(0808 189 1246)
Projector
Number of colours
1.073 billion colors
Projector native resolution
1080p (1920x1080)
Native aspect ratio
0.67291666666667
Supported aspect ratios
0.16875
Screen size compatibility
2032 - 2540 mm (80 - 100")
Projection distance
0.45 - 0.59 m
Contrast ratio (dynamic)
20000:1
Zoom ratio
Fixed
Vertical scan range
24 - 85 Hz
Horizontal scan range
15.3 - 91.1 kHz
Vertical synchronization (min)
0.024 kHz
Vertical synchronization (max)
0.085 kHz
Uniformity
0.85
Matrix type
DMD
Matrix size
1.65 cm (0.65")
Keystone correction- vertical
-5 - 5°
Horizontal synchronization (min)
15.3 kHz
Horizontal synchronization (max)
91.1 kHz
Projection technology
DLP
Projector brightness
4000 ANSI lumens
Lamps
Lamps quantity
1 lamp(s)
Lamp power
260 W
Light source type
Lamp
Service life of light source
3000 h
Light source
Lamps quantity
1 lamp(s)
Lamp power
260 W
Light source type
Lamp
Service life of light source
3000 h
Lens system
Fixed focal length
3.72 mm
Zoom ratio
Fixed
Aperture range (F-F)
2.4 - 2.4
Throw ratio
0.25:1
Offset
1.18
Scanning frequency
Vertical scan range
24 - 85 Hz
Horizontal scan range
15.3 - 91.1 kHz
Video
Supported 3D formats
Frame packing-Side by side-Top and bottom
Full HD
Yes
3D
Yes
Supported video modes
1080i-480i-576i-576p-720p
Audio
Built-in speaker(s)
Yes
RMS rated power
16 W
Ports & interfaces
Micro-USB ports quantity
1
HDMI version
1.4a
VGA (D-Sub) ports quantity
2
HDMI ports quantity
2
Ethernet LAN (RJ-45) ports
1
USB 2.0 ports quantity
1
Composite video in
1
Headphone outputs
1
Microphone in
Yes
Serial interface type
RS-232
RS-232 ports
1
PC Audio out
Yes
PC Audio in
Yes
DVI port
No
AC (power) in
Yes
Network
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
Storage
Optical disc player type
Not included
Card reader integrated
No
Sound emission
Noise level (economic mode)
28 dB
Technical details
Product colour
Grey
On Screen Display (OSD)
Yes
Lamp power
260 W
Performance
Password protection
Yes
On Screen Display (OSD)
Yes
Vertical scan range
24 - 85 Hz
Horizontal scan range
15.3 - 91.1 kHz
Noise level (economic mode)
28 dB
Features
Password protection
Yes
On Screen Display (OSD)
Yes
RoHS compliance
Yes
Noise level (economic mode)
28 dB
Multimedia
Built-in speaker(s)
Yes
RMS rated power
16 W
Design
Product type
Desktop projector
Cable lock slot type
Kensington
Product colour
Grey
Cable lock slot
Yes
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power source
AC
Power consumption (typical)
310 W
Power consumption (standby)
0.5 W
Auto power off
Yes
Power consumption (economy mode)
260 W
Security
Cable lock slot type
Kensington
Cable lock slot
Yes
Other features
Remote control type
IR
RS-232 ports
1
Power consumption (economy mode)
260 W
Operational conditions
Operating relative humidity (H-H)
0 - 85%
Operating temperature (T-T)
5 - 40 °C
Operating altitude
0 - 3000 m
Certificates
RoHS compliance
Yes
Weight & dimensions
Weight
4.85 kg
Width
385 mm
Depth
310 mm
Height
120 mm
Packaging content
Handheld remote control
Yes
Remote control type
IR
Quick start guide
Yes
Manual
Yes
Cables included
AC-VGA
Batteries included
Yes
Optoma Projector EH320USTi
| Length | 31.00 cm |
| Width | 38.50 cm |
| Height | 12.00 cm |
| Weight | 4.850000 kgs |
