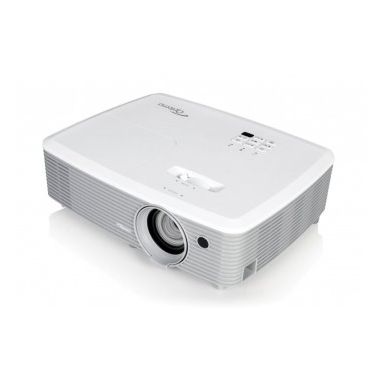

Optoma Projector EH345
In Stock
|
Call For Price
(0808 189 1246)
Projector
Number of colours
1.073 billion colors
Projector native resolution
1080p (1920x1080)
Supported aspect ratios
4:3-16:9
Screen size compatibility
1014 - 7615.2 mm (39.9 - 299.8")
Projection distance
1.3 - 7.5 m
Contrast ratio (typical)
22000:1
Zoom ratio
1.3:1
Zoom capability
Yes
Vertical scan range
24 - 85 Hz
Horizontal scan range
15.3 - 91.1 kHz
Uniformity
0.7
Matrix type
DMD
Matrix size
1.65 cm (0.65")
Keystone correction- vertical
-40 - 40°
Projection technology
DLP
Projector brightness
3200 ANSI lumens
Zoom type
Manual
Lamps
Lamps quantity
1 lamp(s)
Lamp power
195 W
Light source type
Lamp
Service life of light source
5000 h
Service life of light source (economic mode)
10000 h
Light source
Lamps quantity
1 lamp(s)
Lamp power
195 W
Light source type
Lamp
Service life of light source
5000 h
Service life of light source (economic mode)
10000 h
Lens system
Zoom ratio
1.3:1
Zoom capability
Yes
Focal length range (f-f)
16.91 - 21.6 mm
Aperture range (F-F)
2.5 - 2.78
Throw ratio
1.13 - 1.47:1
Offset
1.16
Zoom type
Manual
Scanning frequency
Vertical scan range
24 - 85 Hz
Horizontal scan range
15.3 - 91.1 kHz
Video
Supported 3D formats
Frame packing-Side by side-Top and bottom
Full HD
Yes
3D
Yes
Supported video modes
480i-480p-576i-576p-720p-1080i-1080p
Audio
Built-in speaker(s)
Yes
Number of built-in speakers
1
RMS rated power
10 W
Ports & interfaces
Mobile High-Definition Link (MHL)
Yes
MHL version
2.1
HDMI version
1.4a
VGA (D-Sub) ports quantity
2
HDMI ports quantity
2
USB 2.0 ports quantity
1
Composite video in
1
Headphone outputs
1
Microphone in
Yes
Serial interface type
RS-232
RS-232 ports
1
DVI port
No
CardBus PCMCIA slot type
No
AC (power) in
Yes
Network
Ethernet LAN
No
Storage
Optical disc player type
Not included
Card reader integrated
No
Sound emission
Noise level
29 dB
Technical details
Product colour
White
On Screen Display (OSD)
Yes
Lamp power
195 W
Performance
Password protection
Yes
Password protection type
User
On Screen Display (OSD)
Yes
Vertical scan range
24 - 85 Hz
Horizontal scan range
15.3 - 91.1 kHz
Noise level
29 dB
Features
Password protection
Yes
Password protection type
User
On Screen Display (OSD)
Yes
RoHS compliance
Yes
Noise level
29 dB
Multimedia
Built-in speaker(s)
Yes
Number of built-in speakers
1
RMS rated power
10 W
Design
Product type
Portable projector
Cable lock slot type
Kensington
Product colour
White
LED indicators
Yes
Cable lock slot
Yes
Power
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power source
AC
Power consumption (typical)
232 W
Power consumption (standby)
0.5 W
Auto power off
Yes
Power consumption (economy mode)
192 W
Security
Password protection type
User
Cable lock slot type
Kensington
Cable lock slot
Yes
Indication
LED indicators
Yes
Other features
Remote control type
IR
RS-232 ports
1
Power consumption (economy mode)
192 W
Operational conditions
Operating temperature (T-T)
5 - 40 °C
Operating altitude
0 - 3000 m
Certificates
RoHS compliance
Yes
Weight & dimensions
Weight
2.47 kg
Width
298 mm
Depth
230 mm
Height
96.5 mm
Packaging content
Handheld remote control
Yes
Remote control type
IR
Quick start guide
Yes
Manual
Yes
Cables included
AC
Batteries included
Yes
Optoma Projector EH345
| Length | 23.00 cm |
| Width | 29.80 cm |
| Height | 9.65 cm |
| Weight | 2.470000 kgs |
