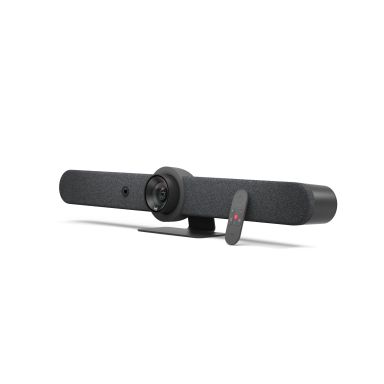

Logitech Rally Bar

Product type

Group video conferencing system

Tilt angle range

-15 - 15°

Pan range

-25 - 25°

Product colour

Graphite

PTZ control

Yes

Product type

Group video conferencing system

Tilt angle range

-15 - 15°

Pan range

-25 - 25°

Product colour

Graphite

PTZ control

Yes

Harmonized System (HS) code

85176990

HD type

4K Ultra HD

Optical zoom

5x

Digital zoom

3x

Supported video modes

576p, 720p, 900p, 1440p, 2160p

Maximum frame rate

30 fps

Microphone pick-up range

4.5 m

Output level

92/99 dB

Line-out impedance

4 ?

Output voltage Total Harmonic Distortion (THD)

2%

RMS rated power

8 W

Noise reduction

Yes

Echo cancellation

Yes

Built-in speaker(s)

Yes

Sample rates

0 - 48 kHz

Audio beamforming

Yes

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity

3

USB connector type

USB Type-A, USB Type-C

DC-in jack

Yes

Microphone in

Yes

HDMI ports quantity

3

HDMI output ports quantity

2

HDMI input ports quantity

1

Interface module Ethernet LAN (RJ-45) ports

1

Ethernet LAN

Yes

Ethernet LAN data rates

10,100,1000 Mbit/s

Wi-Fi

Yes

Wi-Fi standards

802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)

Supported network protocols

IPv4, IPv6

Security algorithms

128-bit AES

Horizontal field of view

82.1°

Remote control interface

Bluetooth

Optical zoom

5x

Digital zoom

3x

Vertical field of view

52.2°

Diagonal field of view

90°

Zoom capability

Yes

Microphone sensitivity

-36 dB

Microphone frequency

90 - 16000 Hz

Microphone direction type

Omnidirectional

Number of microphones

6

Sound pressure level (max)

90 dB

Security algorithms

128-bit AES

Battery capacity

0.675 Wh

Telepresence

No

Master (outer) case width

220 mm

Master (outer) case gross weight

9.91 kg

Master (outer) case length

1004 mm

Master (outer) case height

231 mm

Harmonized System (HS) code

85176990

Windows operating systems supported

Windows 10, Windows 11

Mac operating systems supported

Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey

Storage temperature (T-T)

-40 - 70 °C

Operating temperature (T-T)

0 - 40 °C

Operating relative humidity (H-H)

10 - 95%

Heat dissipation

64 BTU/h

DC input voltage

19 V

AC input voltage

100 - 240 V

Current

4.754 A

Power source type

AC

Power plug type

Type C

Number of batteries supported

2

Battery technology

Lithium

Battery capacity

220 mAh

Width

910 mm

Depth

160 mm

Height

164 mm

Weight

7.08 kg

Package width

207 mm

Package depth

989 mm

Package height

218 mm

Package weight

9.3 kg

Remote control included

Yes

Packaging content

Rally Bar Power supply AC power cord HDMI cable USB cable Remote control Lens caps for main camera and AI Viewfinder User documentation

Cables included

AC, DC, HDMI, USB Type-A to USB Type-C

Power cable length

2.5 m

HDMI cable length

2 m

AC adapter included

Yes

Quick start guide

Yes
