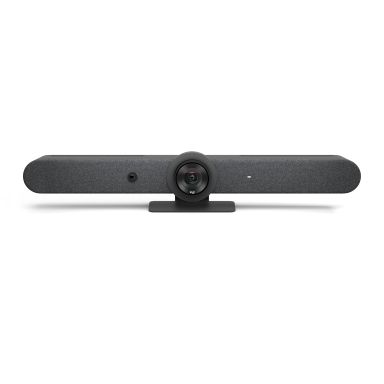

Logitech Rally Bar
In Stock
|
Call For Price
(0808 189 1246)
Performance
Tilt angle range
-15 - 15°
Pan range
-25 - 25°
Product colour
Graphite
PTZ control
Yes
Technical details
Tilt angle range
-15 - 15°
Pan range
-25 - 25°
Product colour
Graphite
PTZ control
Yes
Harmonized System (HS) code
85176990
Video
HD type
4K Ultra HD
Supported video modes
576p, 720p, 900p, 1440p, 2160p
Maximum frame rate
30 fps
Audio
Microphone pick-up range
4.5 m
Output level
92/99 dB
Line-out impedance
4 ?
Output voltage Total Harmonic Distortion (THD)
2%
RMS rated power
8 W
Noise reduction
Yes
Echo cancellation
Yes
Built-in speaker(s)
Yes
Sample rates
0 - 48 kHz
Audio beamforming
Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB connector type
USB Type-A, USB Type-C
DC-in jack
Yes
HDMI ports quantity
3
Ethernet LAN (RJ-45) ports
1
HDMI output ports quantity
2
HDMI input ports quantity
1
Interface module
Interface module RJ-45 ports quantity
1
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Wi-Fi
Yes
Wi-Fi standards
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Supported network protocols
IPv4, IPv6
Security algorithms
128-bit AES
Camera
Horizontal field of view
82.1°
Remote control interface
Bluetooth
Vertical field of view
52.2°
Diagonal field of view
90°
Display
Display
IPS
Display diagonal
25.6 cm (10.1")
Display resolution
1280 x 800 pixels
Touchscreen
Yes
Contrast ratio (typical)
1000:1
Touchscreen type
Capacitive
Viewing angle, vertical
85°
Viewing angle, horizontal
85°
Display brightness
400 cd/m²
Oleophobic coating
Yes
Microphone
Microphone sensitivity
-36 dB
Microphone frequency
90 - 16000 Hz
Microphone direction type
Omnidirectional
Number of microphones
6
Sound pressure level (max)
90 dB
Security
Security algorithms
128-bit AES
Battery
Battery capacity
0.675 Wh
Features
Telepresence
No
Motion sensor
Yes
Cable lock slot
Yes
Cable lock slot type
Kensington
Logistics data
Master (outer) case width
270 mm
Master (outer) case gross weight
13 kg
Master (outer) case length
1013 mm
Master (outer) case height
327 mm
Harmonized System (HS) code
85176990
Computer system
Windows operating systems supported
Windows 10, Windows 11
Mac operating systems supported
Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Operational conditions
Storage temperature (T-T)
-40 - 70 °C
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
10 - 95%
Power
DC input voltage
19 V
AC input voltage
100 - 240 V
Current
4.754 A
Power source type
AC
Power plug type
Type G
Number of batteries supported
2
Battery technology
Lithium
Battery capacity
220 mAh
Weight & dimensions
Interface module dimensions (W x D x H)
246.2 x 171.3 x 56.1 mm
Interface module weight
1 kg
Width
910 mm
Depth
160 mm
Height
164 mm
Weight
7.08 kg
Package width
264 mm
Package depth
1007 mm
Package height
314 mm
Package weight
13 kg
Packaging content
Mounting kit
Yes
Remote control included
Yes
Camera included
Yes
Cables included
AC, DC, HDMI, USB Type-A to USB Type-C
Power cable length
2.5 m
HDMI cable length
2 m
Quick start guide
Yes
