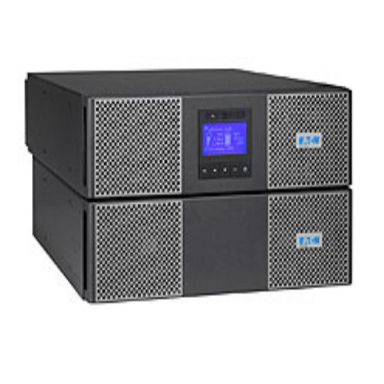

Eaton 9PX Double-conversion (Online) 11 kVA 10000 W 5 AC outlet(s)
In Stock
|
Call For Price
(0808 189 1246)
Power
Output power
10000 W
Input operation voltage (min)
305 V
Input operation voltage (max)
480 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
0.95%
Power factor
0.9
Output voltage Total Harmonic Distortion (THD)
2%
Input current Total Harmonic Distortion (THD)
5%
Output power capacity
11 kVA
Performance
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
3
LED indicators
Yes
Noise level
50 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Pure sine
Number of input phases
3
Output power
10000 W
Input operation voltage (min)
305 V
Input operation voltage (max)
480 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
0.95%
Power factor
0.9
Output voltage Total Harmonic Distortion (THD)
2%
Noise level
50 dB
Input current Total Harmonic Distortion (THD)
5%
Output power capacity
11 kVA
Input frequency
40/70 Hz
Ports & interfaces
USB port
Yes
AC outlets quantity
5 AC outlet(s)
AC outlet types
C19 coupler- Terminal
Power plug
Terminal
USB 2.0 ports quantity
1
Serial ports quantity
1
RS-232 ports
1
Battery
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at half load
13 min
Hot-swap battery
Yes
Automatic battery test
Yes
Design
Rack capacity
6U
Form factor
Rackmount/Tower
LED indicators
Yes
Product colour
Black
Safety
IEC/EN 62040-1
Cooling type
Active
Certification
IEC/EN 62040-1- IEC/EN 62040 -2- IEC/EN 62040-3 (Performance)- CE- CB report (TUV)
Built-in fan
Yes
Display type
LCD
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Technical details
Output frequency
50/60 Hz
Sustainability certificates
ENERGY STAR
Harmonized System (HS) code
85078000
Cooling
Cooling type
Active
Built-in fan
Yes
Weight & dimensions
Weight
88 kg
Width
440 mm
Height
260 mm
Depth
700 mm
Packaging data
Rack mount kit
Yes
Bundled software
Intelligent Power Software suite
Management card included
Yes
Certificates
Safety
IEC/EN 62040-1
Certification
IEC/EN 62040-1- IEC/EN 62040 -2- IEC/EN 62040-3 (Performance)- CE- CB report (TUV)
Other features
Nominal output voltage
230 V
Nominal input voltage
400 V
Packaging content
Rack mount kit
Yes
Bundled software
Intelligent Power Software suite
