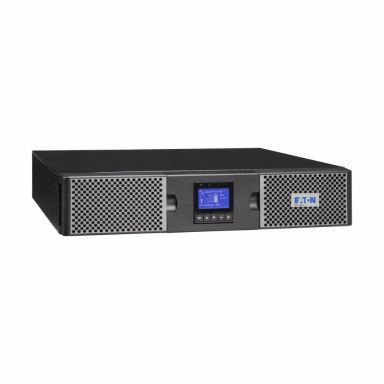

Eaton 9PX1500IRT2UBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8
In Stock
|
$1631.63
$1957.96 (Inc. VAT)
Power
Output power factor
1
Output power
1500 W
Input operation voltage (min)
100 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
92.5%
Power factor
1
Output voltage Total Harmonic Distortion (THD)
3%
Output power capacity
1.5 kVA
Efficiency (ECO mode)
97.5%
ECO mode
Yes
Performance
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of output phases
1
Number of input phases
1
Power protection features
Overdischarge
Noise level
35 dB
Features
Output frequency
50/60 Hz
UPS topology
Double-conversion (Online)
Waveform
Sine
Number of output phases
1
Number of input phases
1
Output power factor
1
Output power
1500 W
Input operation voltage (min)
100 V
Input operation voltage (max)
276 V
Output operation voltage (min)
200 V
Output operation voltage (max)
240 V
Efficiency
92.5%
Power protection features
Overdischarge
Power factor
1
Output voltage Total Harmonic Distortion (THD)
3%
Noise level
35 dB
Output power capacity
1.5 kVA
Efficiency (ECO mode)
97.5%
ECO mode
Yes
Ports & interfaces
USB port
Yes
Serial interface
Yes
Serial interface type
RS-232
AC outlets quantity
8 AC outlet(s)
AC outlet types
C13 coupler
Power plug
C14 coupler
USB 2.0 ports quantity
1
Serial ports quantity
1
USB port type
USB Type-B
Battery
Number of batteries supported
4
Battery voltage
12 V
Battery capacity
9 Ah
Battery technology
Sealed Lead Acid (VRLA)
Typical backup time at full load
5 min
Automatic battery test
Yes
Design
Form factor
Rackmount/Tower
Product colour
Black- Silver
Certification
CISPR22 B TUV cULus CSA 22.2 FCC 15 / B UL 1778 EAC IEC/EN 62040-1 IEC/EN 62040-2
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Operating relative humidity (H-H)
0 - 96%
Operating altitude
0 - 3000 m
Technical details
Output frequency
50/60 Hz
Sustainability compliance
Yes
Sustainability certificates
CE- ENERGY STAR
Weight & dimensions
Weight
17.8 kg
Width
550 mm
Height
240 mm
Depth
580 mm
Packaging data
Cables included
Input power cable- Serial- USB cable
Rack mount kit
Yes
Certificates
Certification
CISPR22 B TUV cULus CSA 22.2 FCC 15 / B UL 1778 EAC IEC/EN 62040-1 IEC/EN 62040-2
Packaging content
Cables included
Input power cable- Serial- USB cable
Rack mount kit
Yes
Eaton 9PX1500IRT2UBS uninterruptible power supply (UPS) Double-conversion (Online) 1.5 kVA 1500 W 8
